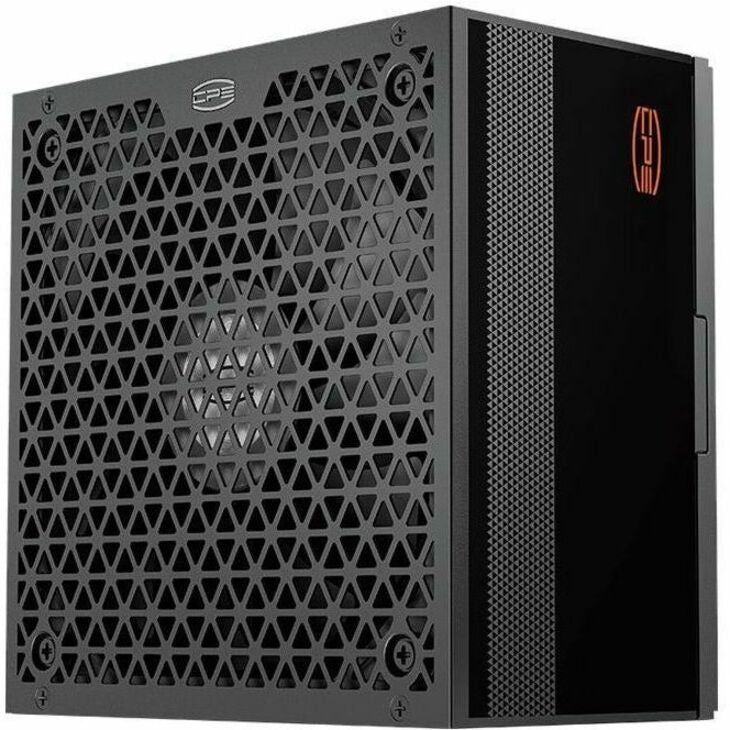

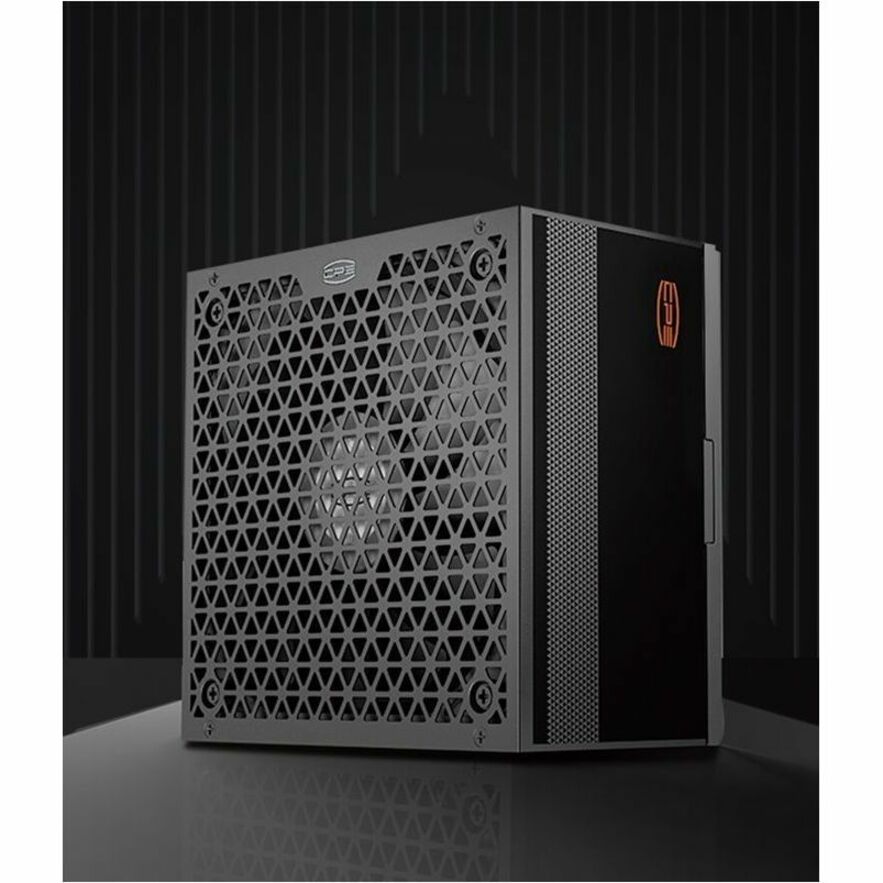

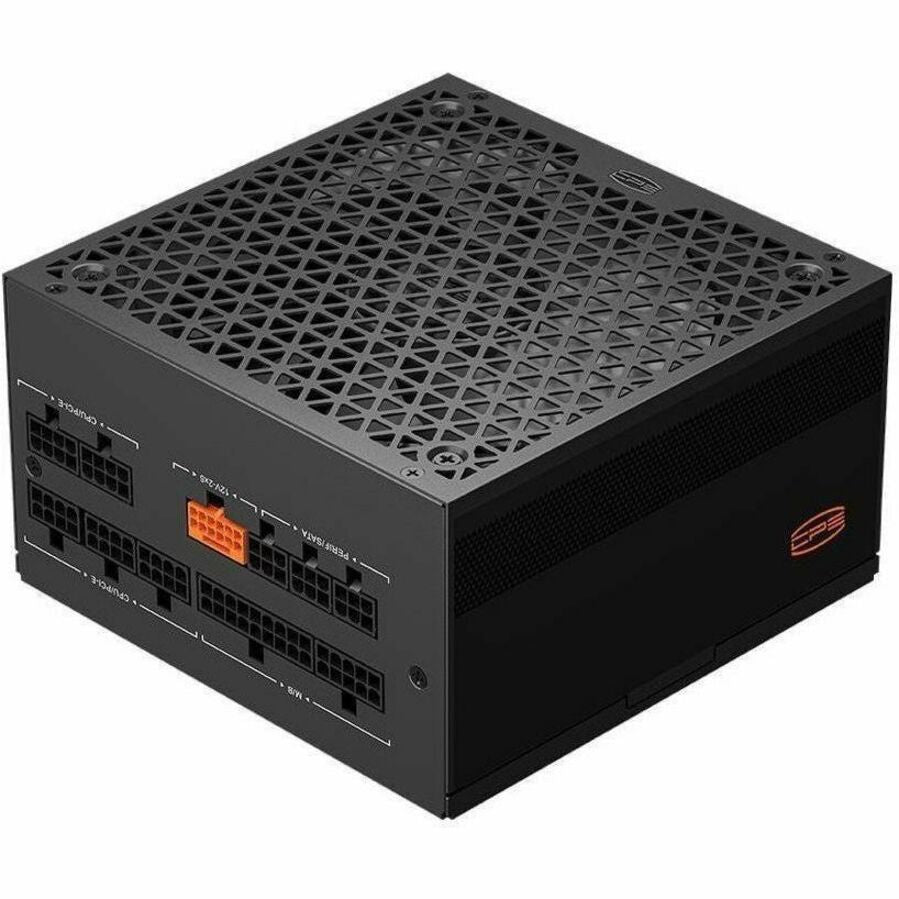

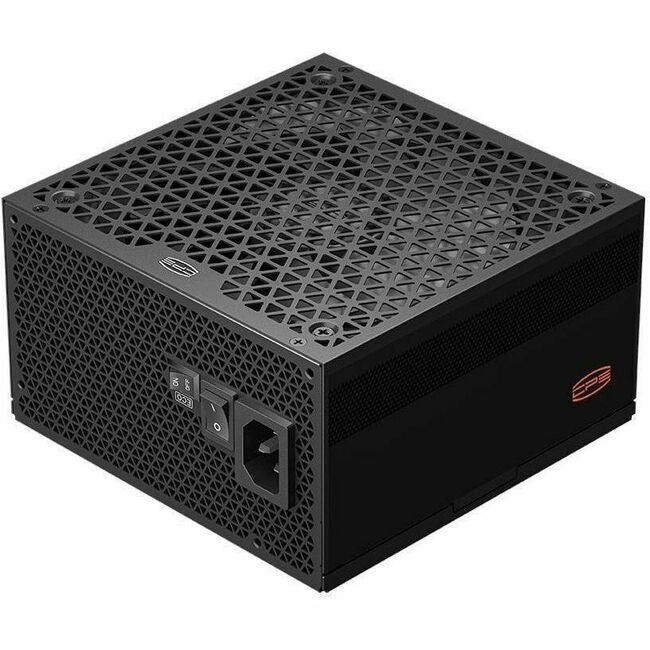

Quiet Powerhouse: PCCOOLER YS850 80 PLUS Gold PSU
The PCCOOLER YS850 is the perfect, reliable foundation for your high-performance gaming PC. It delivers a full 850 Watts of power with rock-solid 80 PLUS Gold efficiency, ensuring your system runs smoothly and quietly. This unit is completely Fully Modular to give you the cleanest possible build and comes ready for next-gen graphics cards with its native 12V-2x6 connector. Plus, the extra-large 135mm fan features a Hybrid Mode, keeping your PC dead silent under normal use.
⭐ Highlights
⭐ Highlights

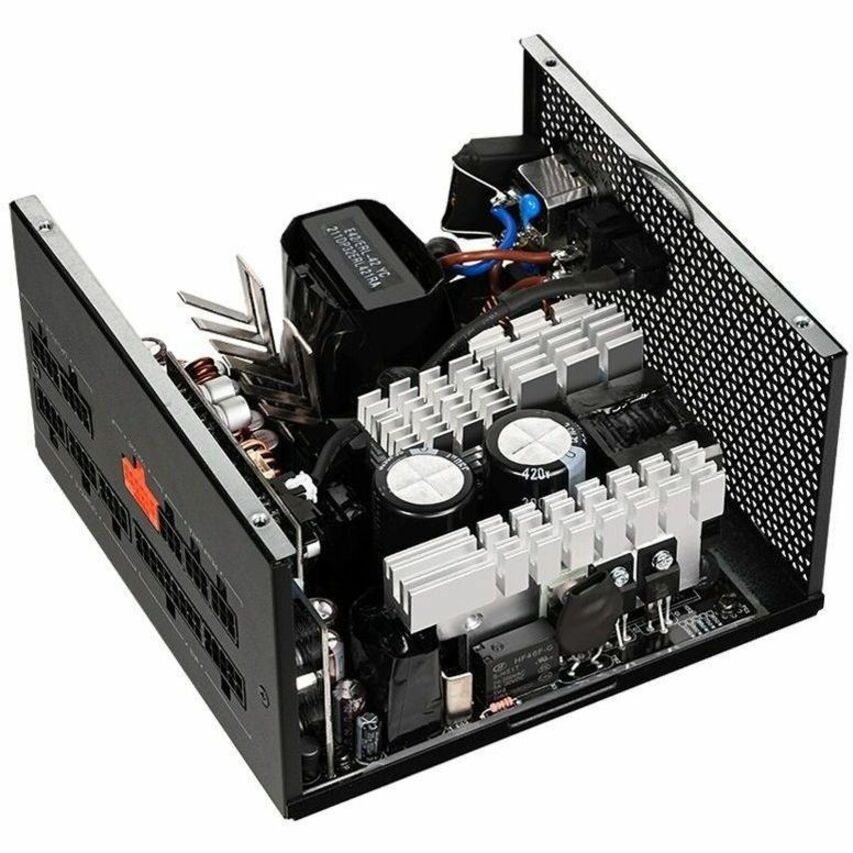

850W Fully Modular ATX PSU (Seasonic OEM) | ATX 3.1 & PCIe 5.1 Ready (600W 12V-2x6 Cable) | 80 PLUS Gold Certified (Cybenetics Gold/A-) | 135mm FDB Fan with Zero RPM Mode | 105°C Japanese Capacitors & 12-Year Warranty (YS Series)
⚙️ Specifications
⚙️ Specifications
PSU_Form_Factor: ATX (Standard 160mm length)
PSU_Wattage: 850 W (Continuous)
PSU_Efficiency_Rating: 80 PLUS Gold

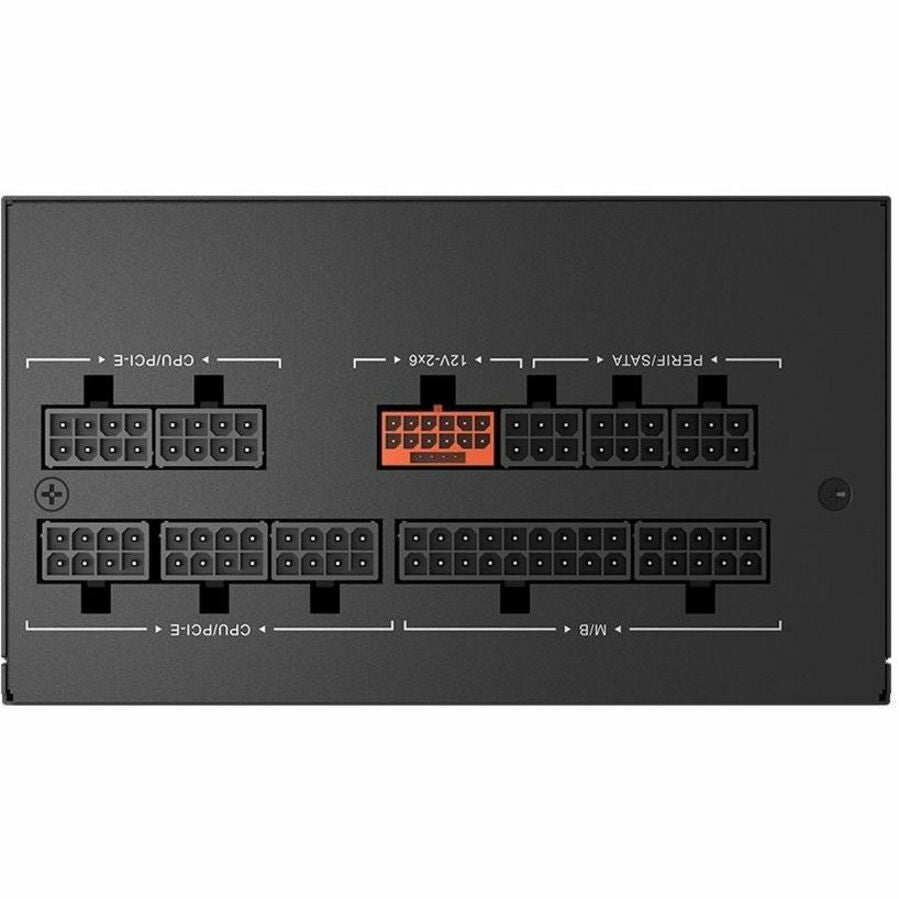

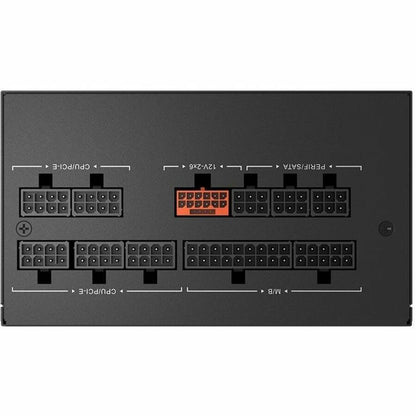

PSU_Modularity: Fully Modular
PSU_PCIe_5_Connector: 1 x 12V-2x6 (12+4 pin) cable (600W Rated)

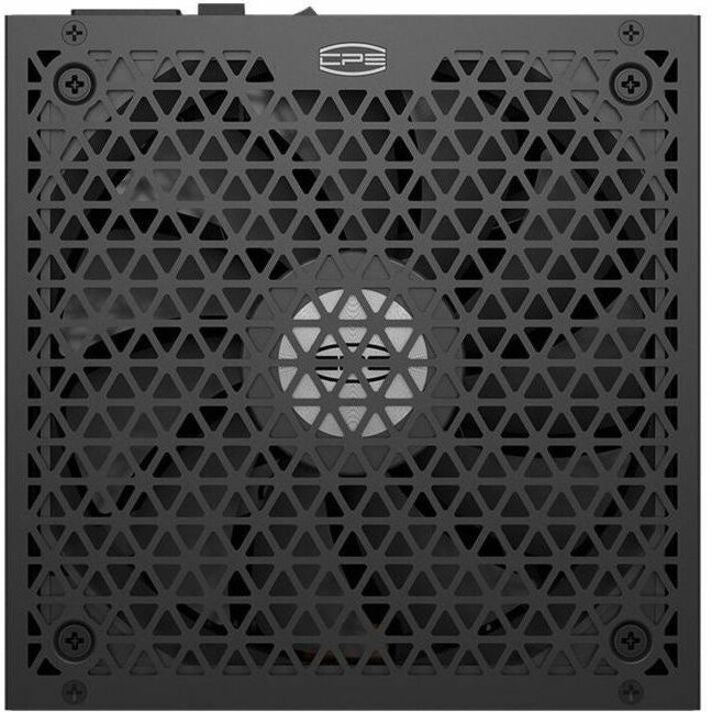

PSU_Fan_Size_mm: 135 mm (Fluid Dynamic Bearing with Hybrid/Zero RPM Mode)
PSU_Safety_Protections: OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OPP (Over Power), OTP (Over Temperature), OCP (Over Current)
Share
The POST-Check Protocol
-
Calculate Required Wattage
Action: Use an online PSU calculator (or check your GPU/CPU recommendations) to determine the wattage needed and choose a PSU that is 20% to 30% higher than that total load. Why: Running a PSU at or near its maximum capacity reduces its efficiency and lifespan, leading to potential instability and crashes.
-
NEVER Mix Modular Cables
Action: CRITICAL: Only use the modular cables that came inside the box of your specific, new PSU, and never reuse old cables from a previous unit, even if they fit. Why: Modular cables are not standardized on the PSU end; mixing them can send incorrect voltages to components and instantly destroy the motherboard or GPU.
-
Fan Orientation
Action: When installing the PSU into the case, orient the fan so it is facing the vent/dust filter on the case (usually downward, at the bottom). Why: This ensures the PSU pulls cool, fresh air directly from outside the case to cool its own components, maximizing its lifespan.
-
Essential Cable Connections
Action: Ensure the 24-pin ATX (motherboard), the 8-pin CPU (motherboard top-left), and all PCIe power cables (GPU) are fully seated and clicked in. Why: A loose or partially plugged-in cable can lead to catastrophic failure, burning out the connector port or causing system instability under load.
-
The Power Switch
Action: Before working inside the PC, flip the power switch on the PSU itself to the OFF (0) position and unplug the wall cord, then press the case power button to drain residual power. Why: This discharges capacitors, eliminating the risk of accidental electrical shock or frying sensitive components with residual power.
-
Cable Management (Modular)
Action: If using a modular PSU, plug in only the cables your components require and route all cables neatly behind the motherboard tray. Why: This improves airflow and makes the build cleaner, but more importantly, it ensures no loose, unused cables are left inside to snag fans or short against metal.
