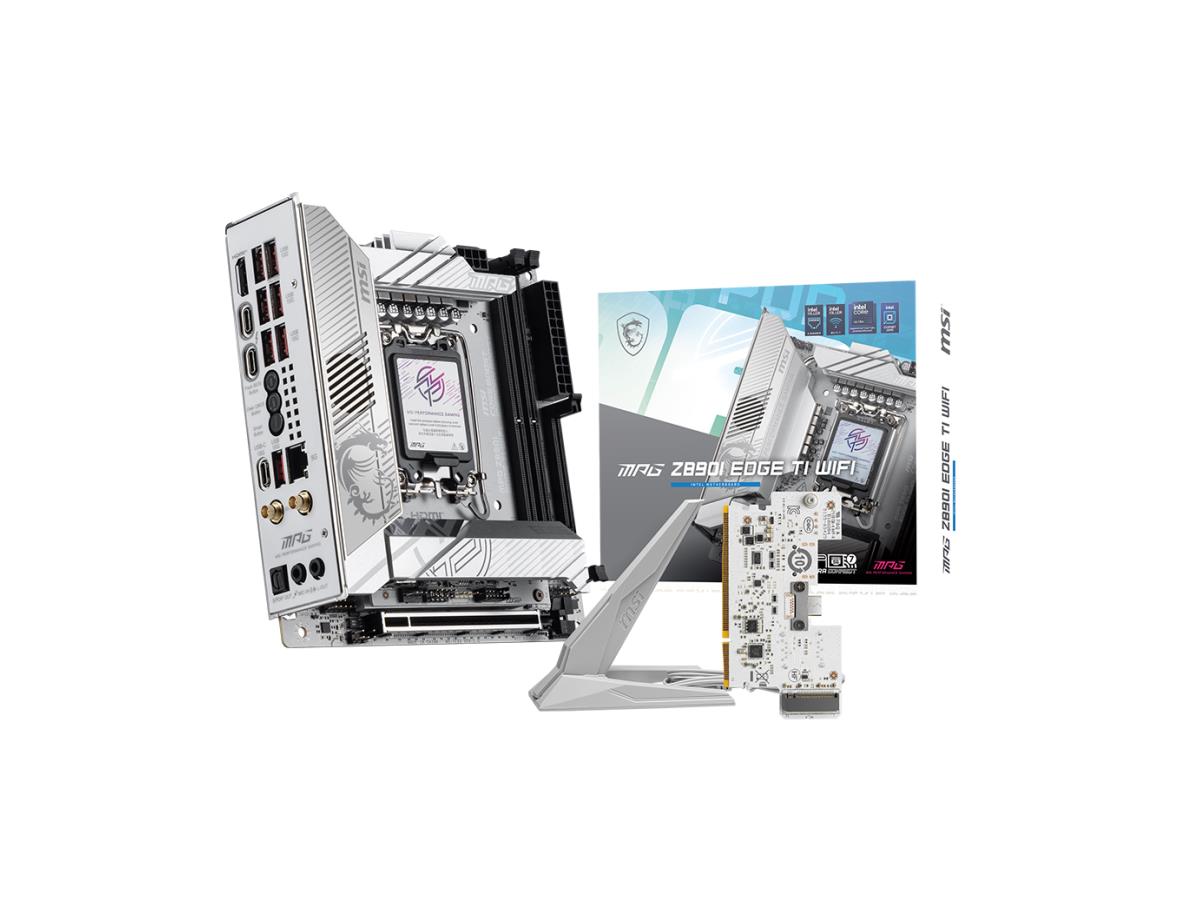

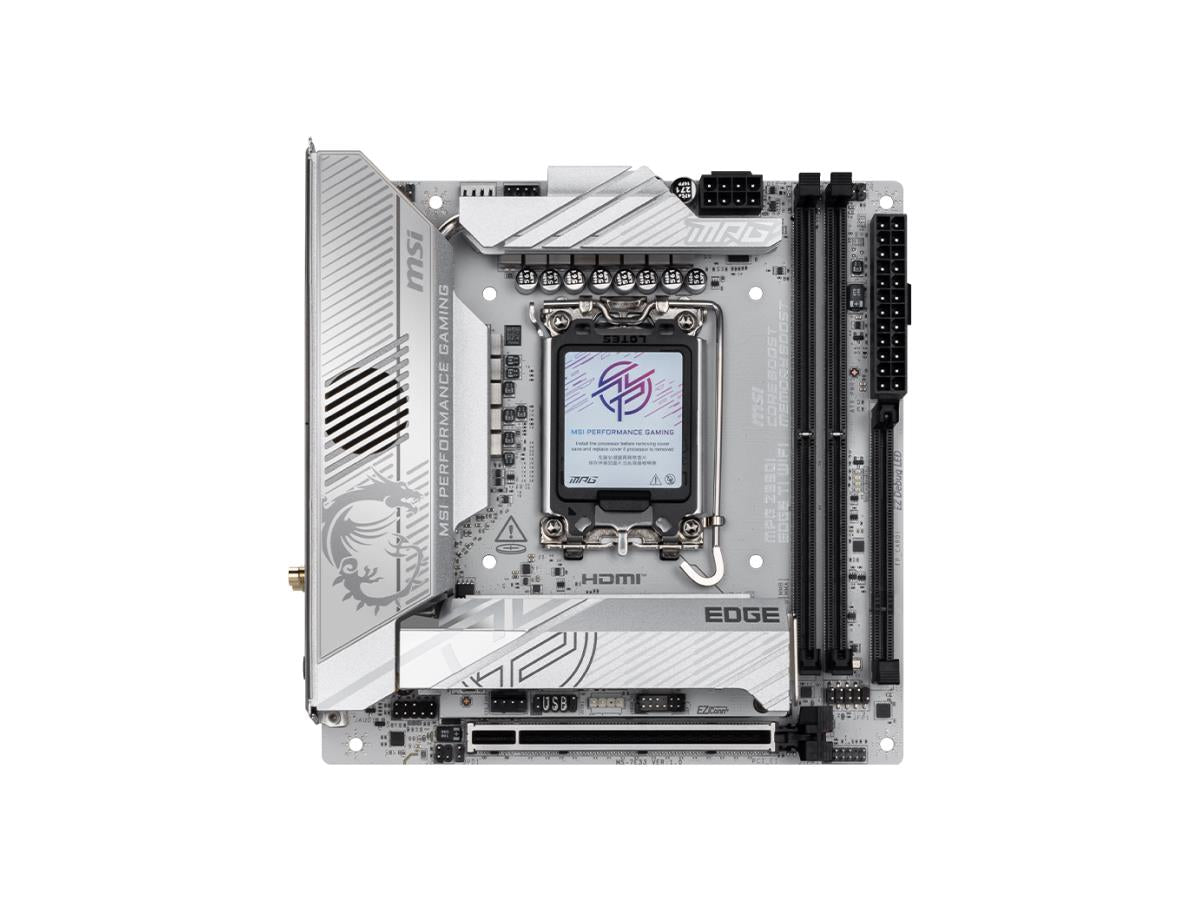

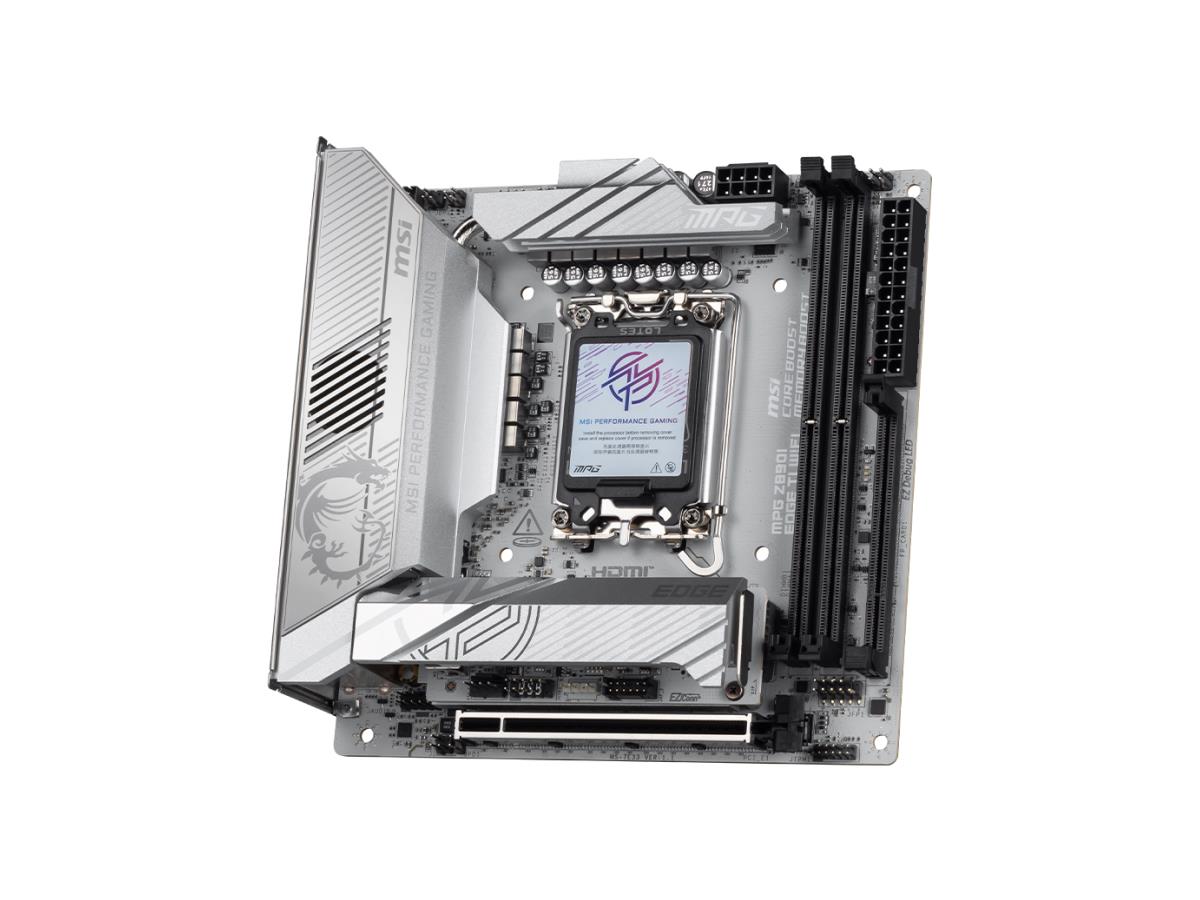

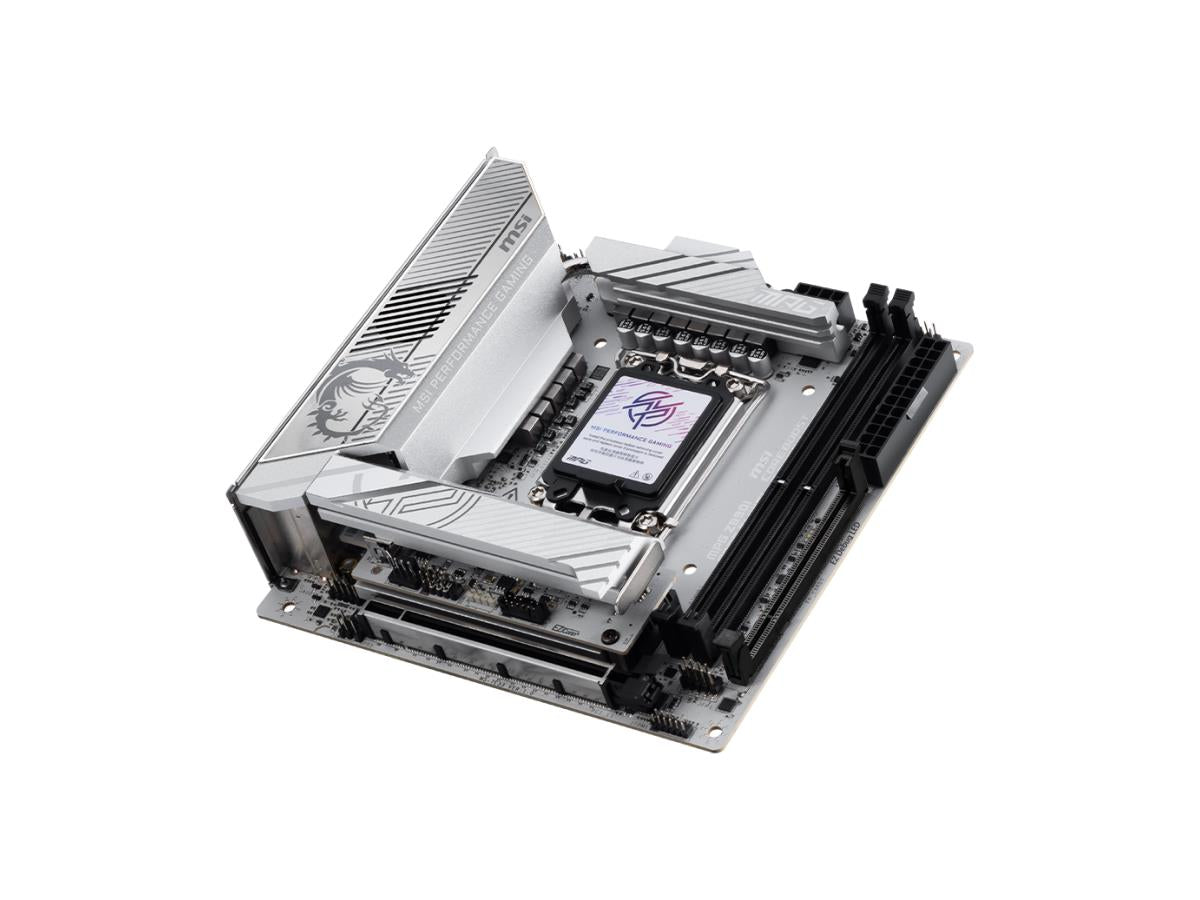

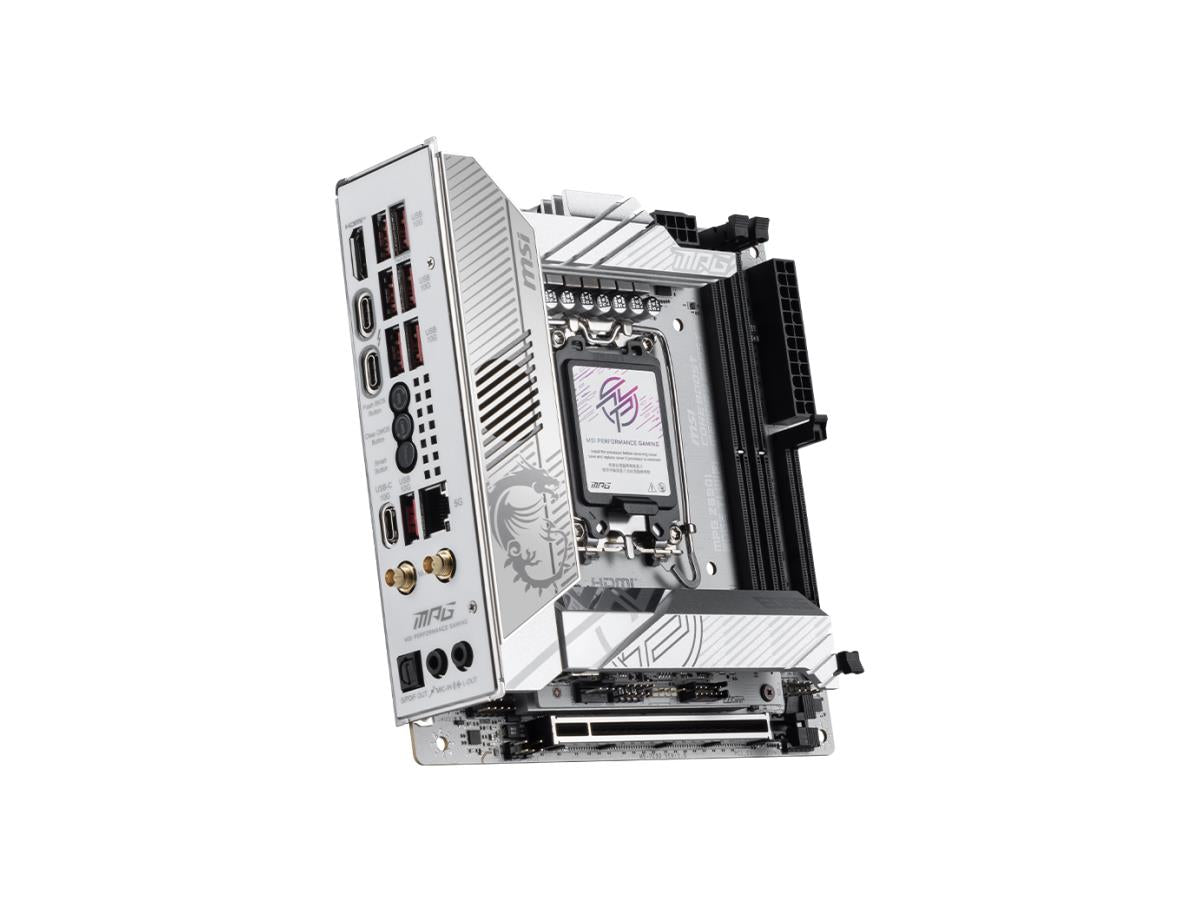

The Unstoppable Mini: MSI MPG Z890I EDGE TI WIFI
The MSI MPG Z890I EDGE TI WIFI is proof that you don't need a massive case for ultimate power. This Mini-ITX motherboard is an absolute beast, packing the best-of-the-best technology into a tiny 6.7-inch square. It’s built for the newest Intel processors and comes loaded with next-gen features like blazing-fast Wi-Fi 7, 5G LAN, dual Thunderbolt 4 ports, and multiple PCIe 5.0 SSD slots. This board is the number one choice for building a tiny, top-tier gaming PC with zero compromises.
⭐ Highlights
⭐ Highlights
Mini-ITX with Quad M.2 Slots | Dual Thunderbolt 4 (40Gbps) Ports | Wi-Fi 7 and 5G Killer LAN | Direct 10+1+1+1 Phase Power Design | PCIe 5.0 Slot & Gen5 M.2
⚙️ Specifications
⚙️ Specifications
Motherboard Socket Type: LGA 1851 (Supports Intel Core Ultra Processors, Series 2)
Motherboard Chipset: Intel Z890
Motherboard Form Factor: Mini-ITX (170 mm x 170 mm)
Motherboard RAM Type Speed: DDR5-8600+ (OC)
Motherboard RAM Slots: 2 x DIMM Slots
Motherboard Max RAM Capacity: 128 GB
Motherboard PCIe Slot Primary: 1 x PCIe 5.0 x16
Motherboard M.2 Slots: 4 x M.2 Slots (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4)
Motherboard SATA Ports: 2 x SATA 6Gb/s Ports (More via optional expansion card)

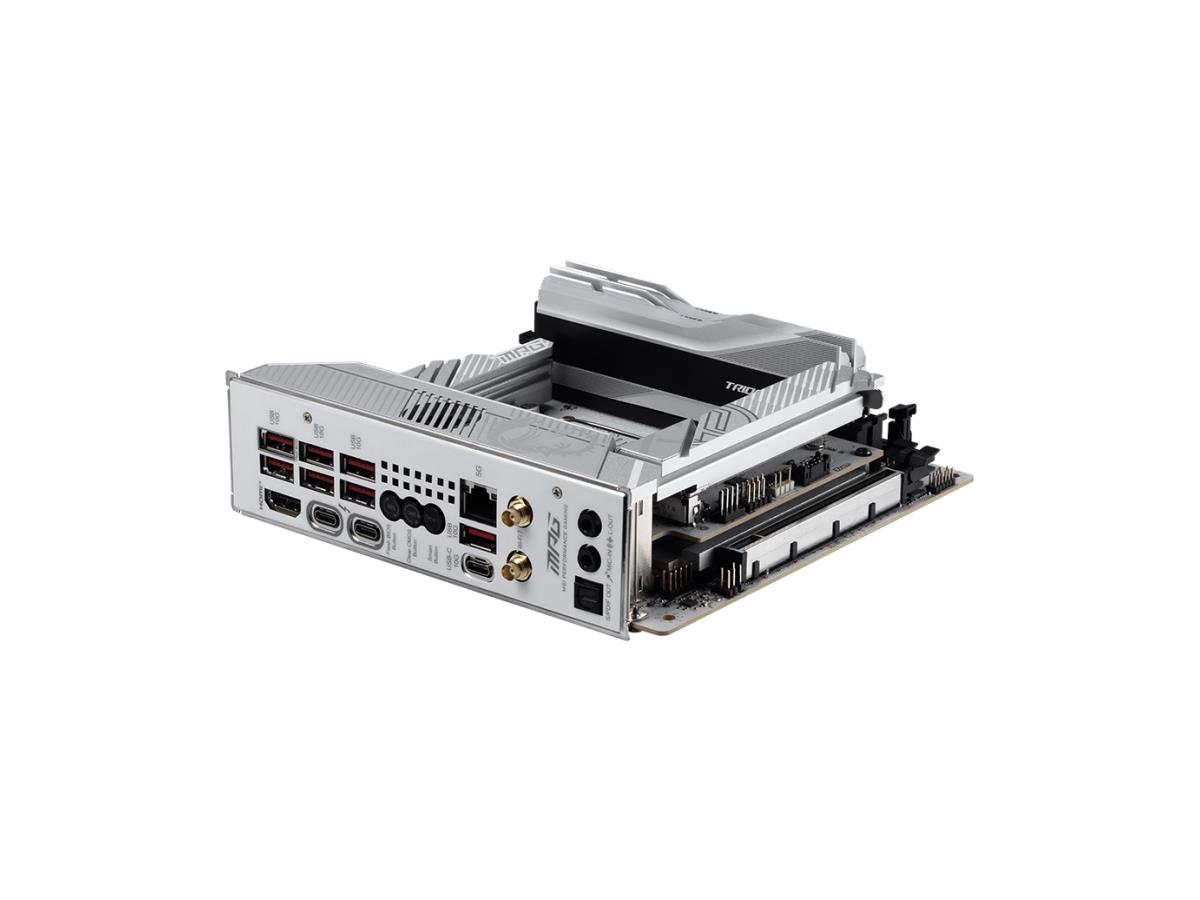

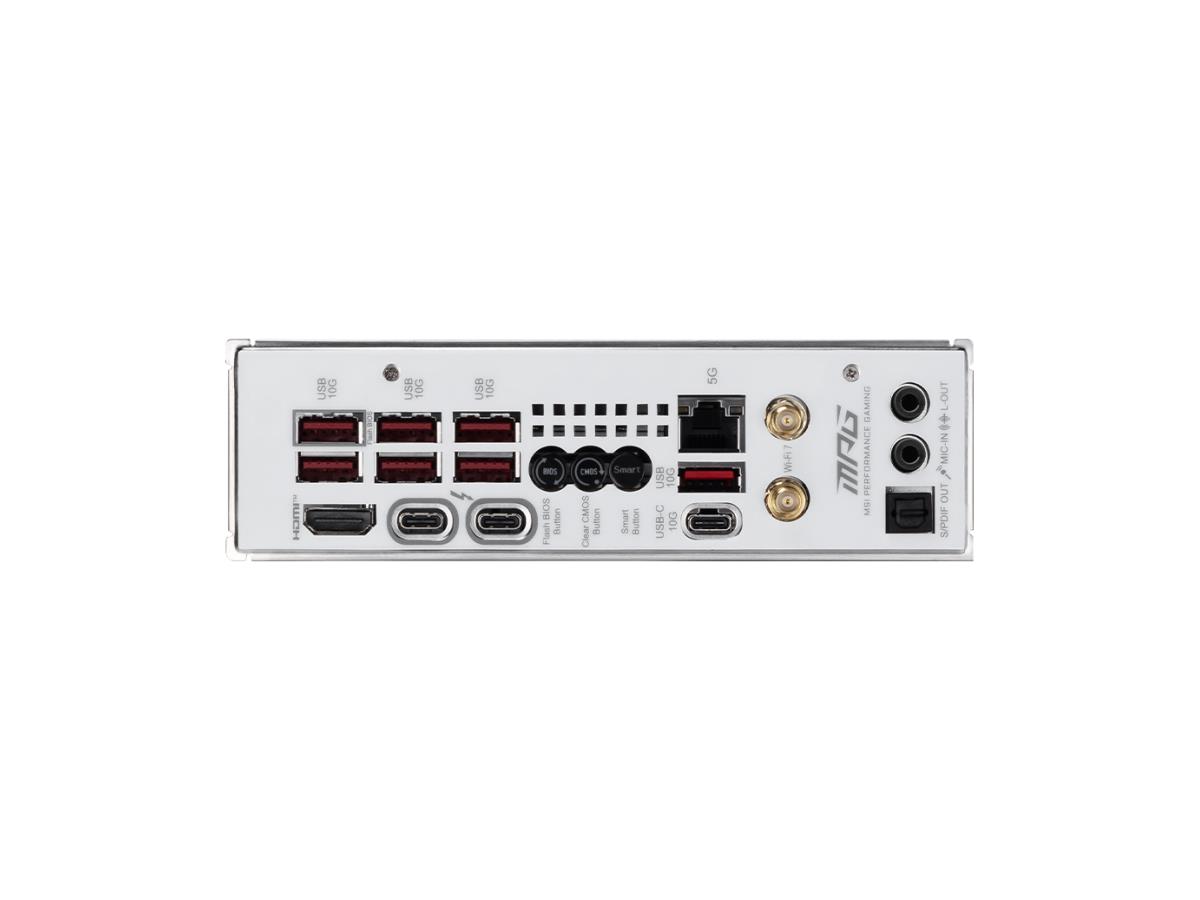

Motherboard Rear USB Ports: 2 x Thunderbolt 4, 1 x USB 10Gbps Type-C, 7 x USB 10Gbps Type-A
Motherboard Networking: Wi-Fi 7, Bluetooth 5.4, 5 Gigabit Ethernet (5G LAN)
Share
The POST-Check Protocol
-
Standoff Installation
Action: Must ensure metal standoffs are installed in the case for every screw hole on the motherboard and only those holes. Why: Standoffs lift the motherboard away from the metal case, preventing a fatal electrical short that will destroy the board when powered on.
-
The I/O Shield
Action: If your motherboard doesn't have an integrated I/O shield, install the separate shield into the case before mounting the motherboard. Why: Forgetting the shield means you must unscrew and remove the entire motherboard later, which is a massive waste of time.
-
Pre-Install Components
Action: For ease of assembly, install the CPU, CPU Cooler mounting brackets, RAM, and M.2 SSDs onto the motherboard before placing it in the case. Why: Working outside the case avoids cramped spaces and makes critical installations (like the CPU cooler backplate) far simpler.
-
Front Panel Headers
Action: Consult the motherboard manual and use the tiny front panel connectors (for Power/Reset buttons and LEDs) before installing the GPU, or buy a front panel header block to connect them as one piece. Why: These tiny pins are difficult to access once the large GPU is in place, and incorrect wiring means your power button won't work.
-
The Power Duo
Action: Ensure both the large 24-pin ATX power cable and the 8-pin (or 4+4 pin) CPU power cable are firmly clicked into the motherboard. Why: The 24-pin powers the board, but the 8-pin is the dedicated line for the CPU; skipping the latter means the system will not boot.
-
RAM Seating
Action: Press the RAM sticks firmly into the correct dual-channel slots (check the manual for slot numbering, usually A2/B2) until the latches at both ends click securely. Why: Improperly seated RAM is the most frequent cause of a new PC failing to POST (power on self-test).
