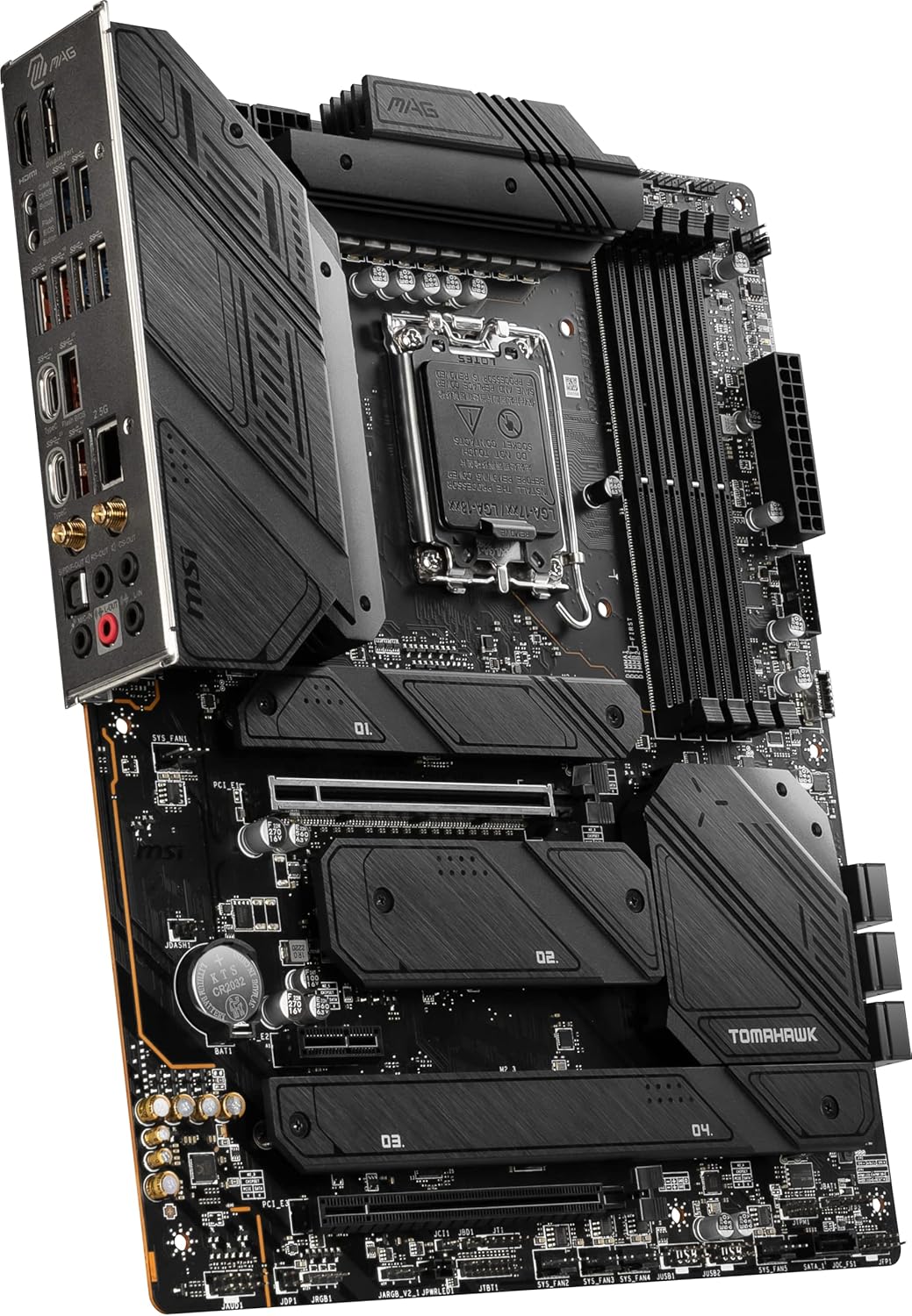

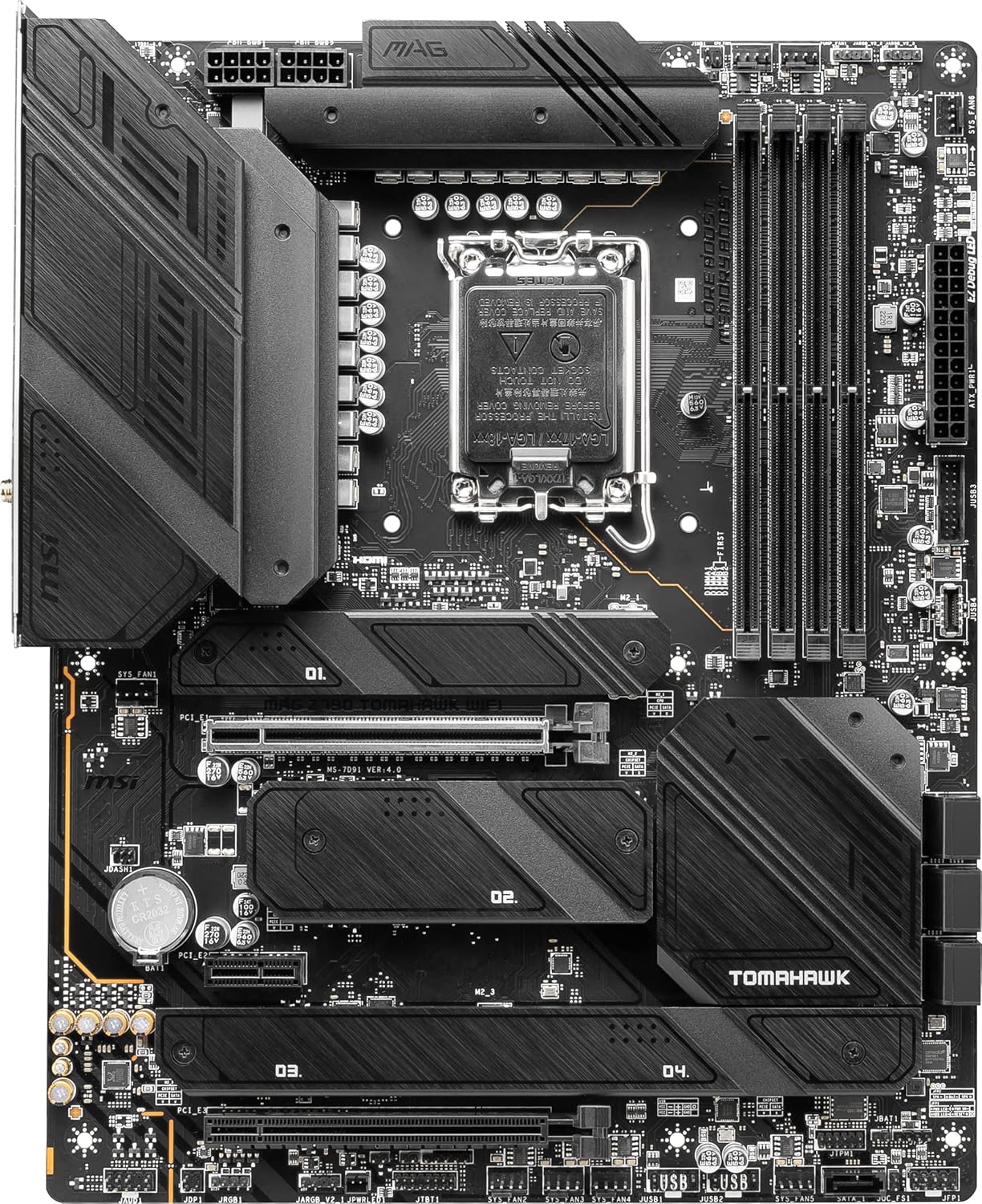

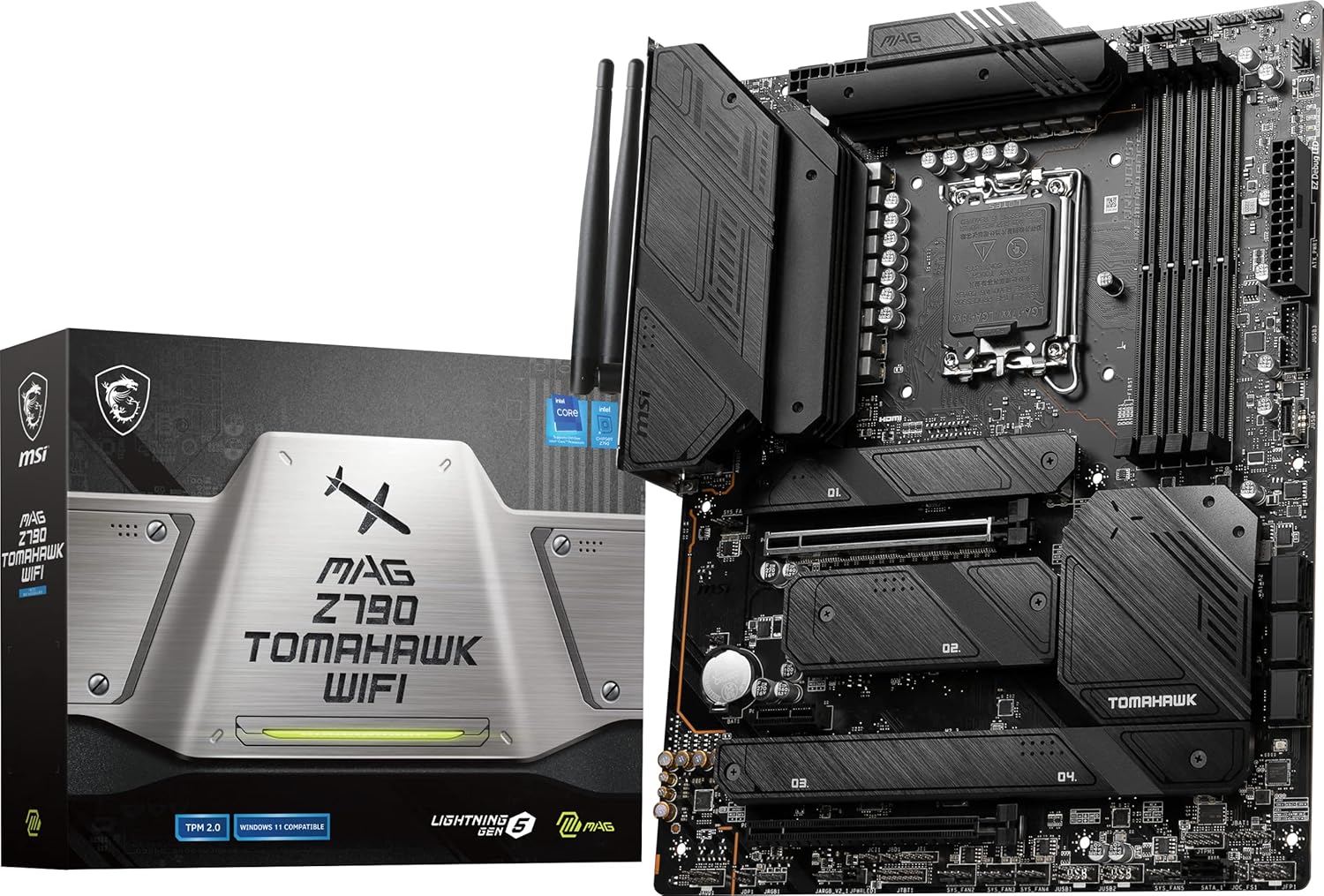

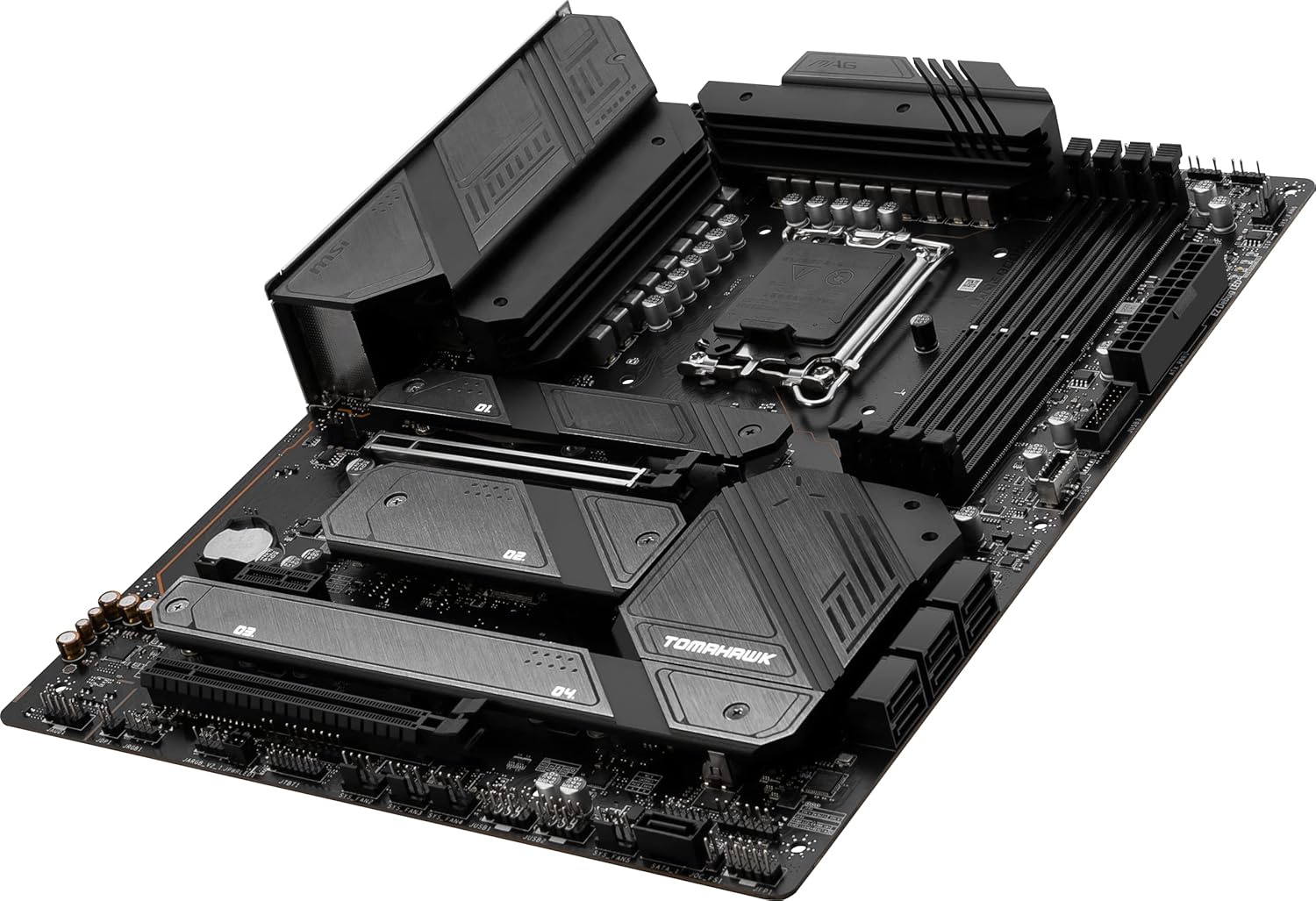

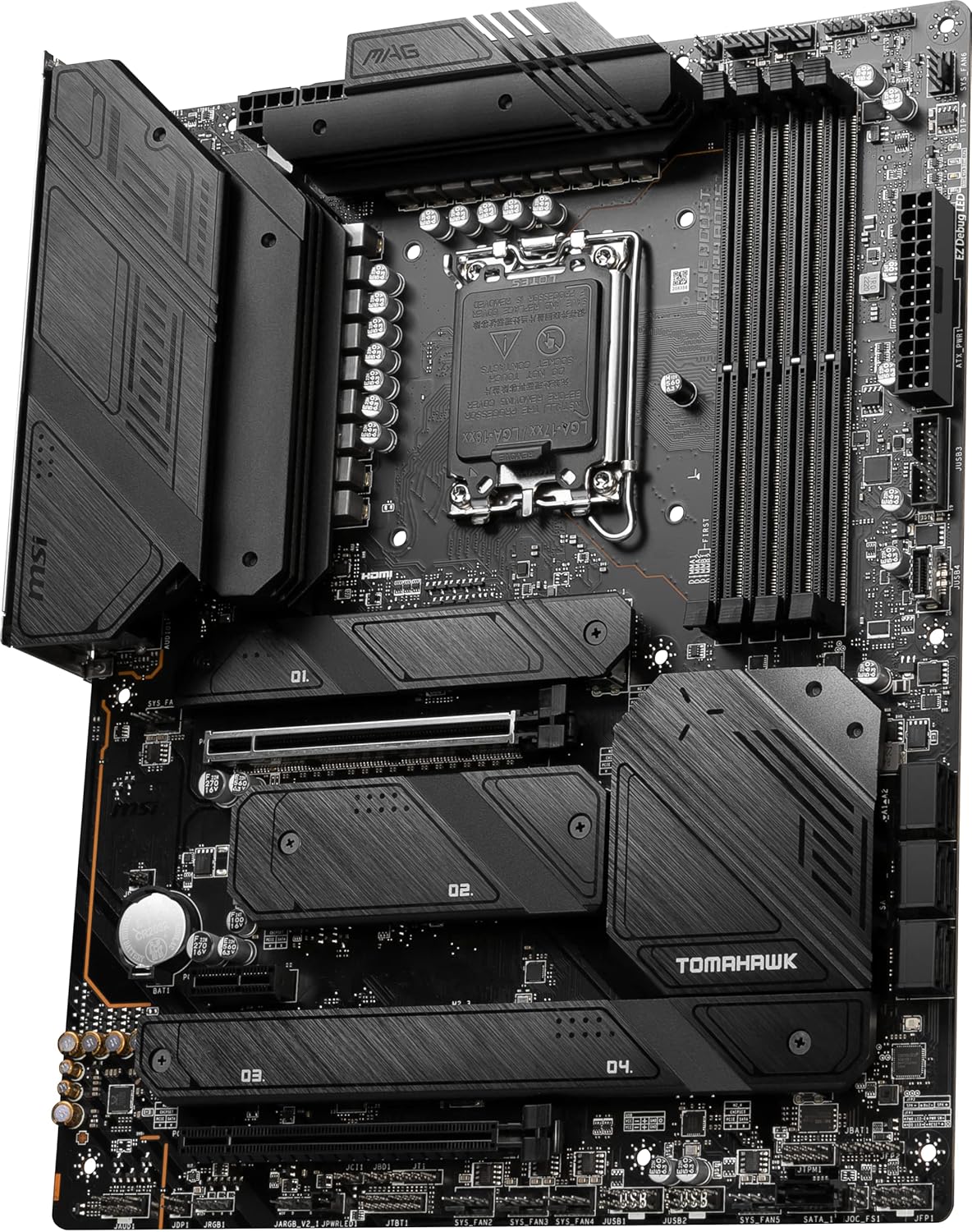

The Unbreakable Mid-Range: MSI MAG Z790 TOMAHAWK WIFI
The MSI MAG Z790 TOMAHAWK WIFI is the ultimate foundation for your high-performance Intel PC. Built to handle the powerful 12th, 13th, and 14th Gen Intel CPUs, this board combines military-grade durability with all the modern features you need. From its blazing-fast PCIe 5.0 graphics slot to its 20Gbps USB-C port and rock-solid cooling for the power delivery, this Tomahawk is ready for demanding gaming and multitasking.
⭐ Highlights
⭐ Highlights
16-Phase Mirrored Power Arrangement | Lightning Gen 5 PCIe Slot | Quad M.2 Connectors | Wi-Fi 6E and 2.5G LAN | Rear USB 3.2 Gen 2x2 (20Gbps)
⚙️ Specifications
⚙️ Specifications
Motherboard Socket Type: LGA 1700 (Supports Intel 14th/13th/12th Gen)
Motherboard Chipset: Intel Z790
Motherboard Form Factor: ATX (304.8mm x 243.84mm)
Motherboard RAM Type Speed: DDR5-7200+ (OC)
Motherboard RAM Slots: 4 x DIMM Slots
Motherboard Max RAM Capacity: 128 GB
Motherboard PCIe Slot Primary: 1 x PCIe 5.0 x16
Motherboard M.2 Slots: 4 x M.2 Slots (1 x PCIe 5.0 x4, 3 x PCIe 4.0 x4)
Motherboard SATA Ports: 7 x SATA 6Gb/s Ports

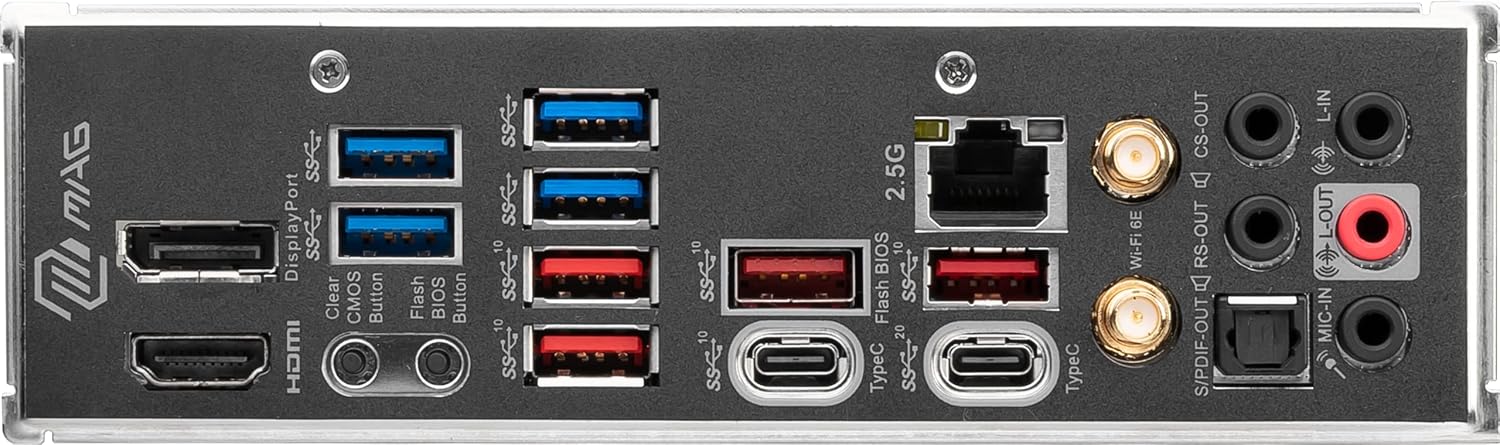

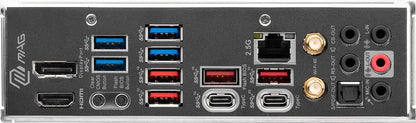

Motherboard Rear USB Ports: 1 x USB 20Gbps Type-C, 1 x USB 10Gbps Type-C, 4 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A
Motherboard Networking: Wi-Fi 6E, Bluetooth 5.3, 2.5 Gigabit Ethernet
Share
The POST-Check Protocol
-
Standoff Installation
Action: Must ensure metal standoffs are installed in the case for every screw hole on the motherboard and only those holes. Why: Standoffs lift the motherboard away from the metal case, preventing a fatal electrical short that will destroy the board when powered on.
-
The I/O Shield
Action: If your motherboard doesn't have an integrated I/O shield, install the separate shield into the case before mounting the motherboard. Why: Forgetting the shield means you must unscrew and remove the entire motherboard later, which is a massive waste of time.
-
Pre-Install Components
Action: For ease of assembly, install the CPU, CPU Cooler mounting brackets, RAM, and M.2 SSDs onto the motherboard before placing it in the case. Why: Working outside the case avoids cramped spaces and makes critical installations (like the CPU cooler backplate) far simpler.
-
Front Panel Headers
Action: Consult the motherboard manual and use the tiny front panel connectors (for Power/Reset buttons and LEDs) before installing the GPU, or buy a front panel header block to connect them as one piece. Why: These tiny pins are difficult to access once the large GPU is in place, and incorrect wiring means your power button won't work.
-
The Power Duo
Action: Ensure both the large 24-pin ATX power cable and the 8-pin (or 4+4 pin) CPU power cable are firmly clicked into the motherboard. Why: The 24-pin powers the board, but the 8-pin is the dedicated line for the CPU; skipping the latter means the system will not boot.
-
RAM Seating
Action: Press the RAM sticks firmly into the correct dual-channel slots (check the manual for slot numbering, usually A2/B2) until the latches at both ends click securely. Why: Improperly seated RAM is the most frequent cause of a new PC failing to POST (power on self-test).
