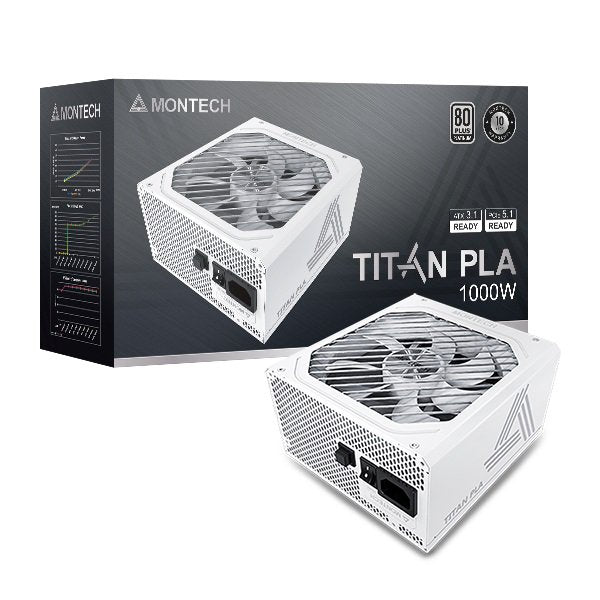

MONTECH TITAN PLA 1000W High-End ATX Gaming Power Supply - 80 Plus Platinum
MONTECH TITAN PLA 1000W High-End ATX Gaming Power Supply - 80 Plus Platinum
Couldn't load pickup availability
The Pure Power Giant: MONTECH TITAN PLA 1000W (White)
The MONTECH TITAN PLA 1000W is a serious, high-end power supply designed for builders who want the absolute best performance and a clean, white aesthetic. This unit is certified 80 PLUS Platinum and Cybenetics Platinum for peak energy efficiency, ensuring extremely stable power delivery with minimal heat waste. It's Fully Modular with flexible white cables and is completely PCIe 5.1 Ready, featuring a native 12V-2x6 connector capable of delivering a full 600W to your newest graphics card. Power your highest-end PC silently with the quality of Seasonic internals.
⭐ Highlights
⭐ Highlights
1000W ATX Power Supply (Seasonic OEM) | 80 PLUS & Cybenetics Platinum Certified | ATX 3.1 & PCIe 5.1 Ready (Native 12V-2x6 600W Cable) | 135mm FDB Fan with Zero RPM Mode (Cybenetics A+ Noise) | 100% Japanese Capacitors & 10-Year Warranty
⚙️ Specifications
⚙️ Specifications
PSU_Form_Factor: ATX (Standard 160mm length)
PSU_Wattage: 1000 W (Continuous)
PSU_Efficiency_Rating: 80 PLUS Platinum
PSU_Modularity: Fully Modular

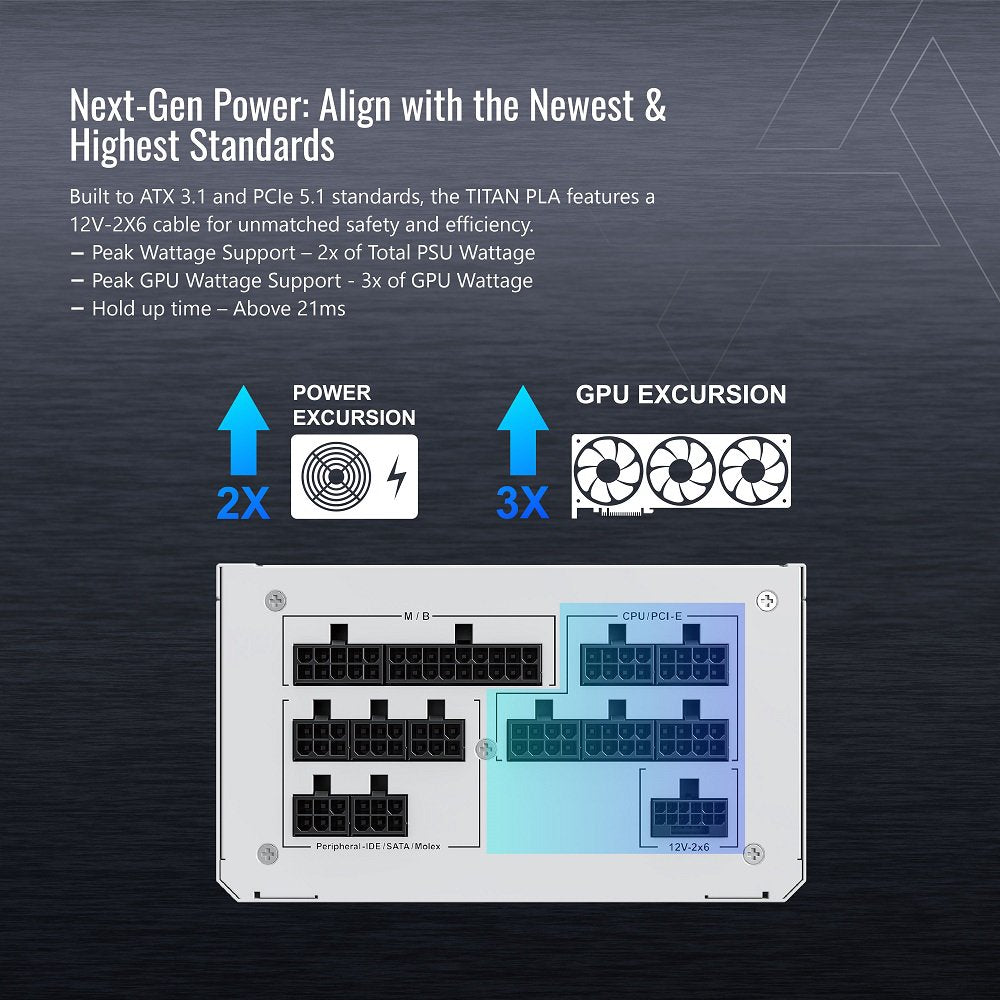

PSU_PCIe_5_Connector: 1 x 12V-2x6 (12+4 pin) cable (600W Rated)

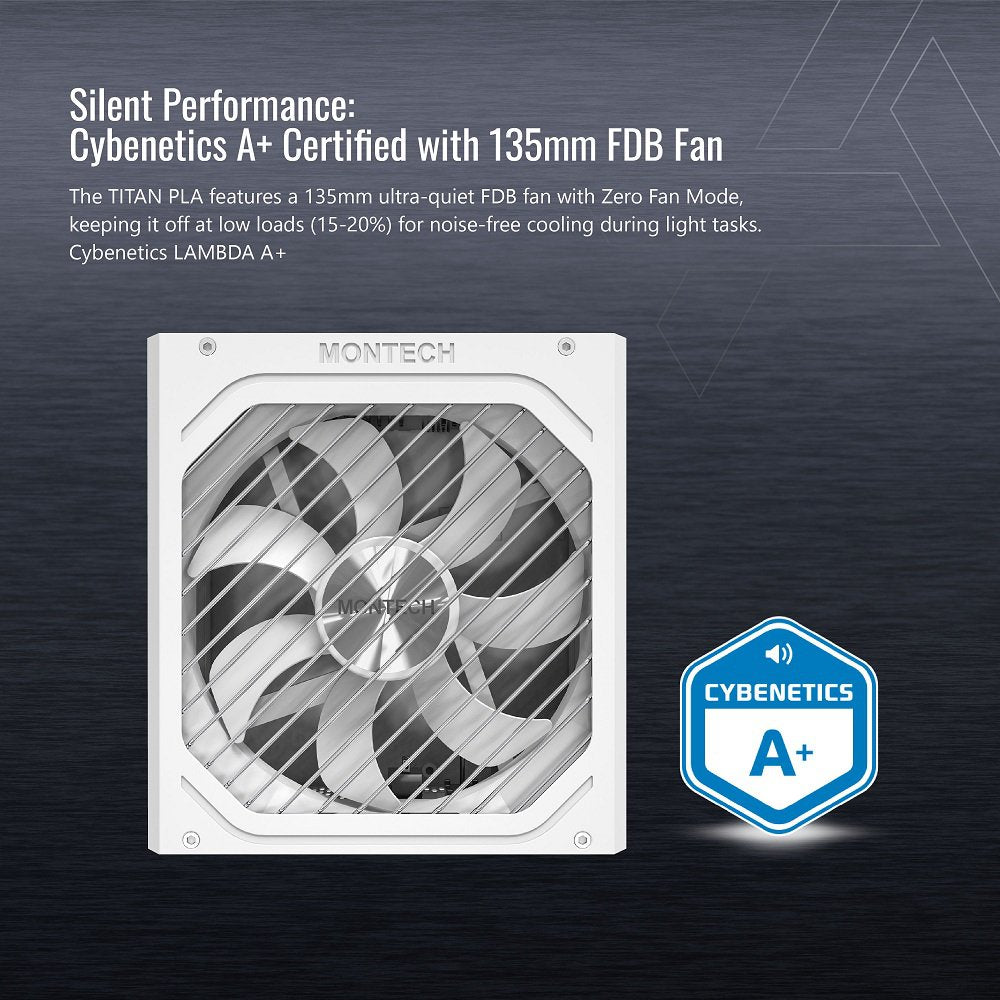

PSU_Fan_Size_mm: 135 mm (Fluid Dynamic Bearing with Zero RPM Mode)
PSU_Safety_Protections: OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OPP (Over Power), OTP (Over Temperature), OCP (Over Current)
Share
The POST-Check Protocol
-
Calculate Required Wattage
Action: Use an online PSU calculator (or check your GPU/CPU recommendations) to determine the wattage needed and choose a PSU that is 20% to 30% higher than that total load. Why: Running a PSU at or near its maximum capacity reduces its efficiency and lifespan, leading to potential instability and crashes.
-
NEVER Mix Modular Cables
Action: CRITICAL: Only use the modular cables that came inside the box of your specific, new PSU, and never reuse old cables from a previous unit, even if they fit. Why: Modular cables are not standardized on the PSU end; mixing them can send incorrect voltages to components and instantly destroy the motherboard or GPU.
-
Fan Orientation
Action: When installing the PSU into the case, orient the fan so it is facing the vent/dust filter on the case (usually downward, at the bottom). Why: This ensures the PSU pulls cool, fresh air directly from outside the case to cool its own components, maximizing its lifespan.
-
Essential Cable Connections
Action: Ensure the 24-pin ATX (motherboard), the 8-pin CPU (motherboard top-left), and all PCIe power cables (GPU) are fully seated and clicked in. Why: A loose or partially plugged-in cable can lead to catastrophic failure, burning out the connector port or causing system instability under load.
-
The Power Switch
Action: Before working inside the PC, flip the power switch on the PSU itself to the OFF (0) position and unplug the wall cord, then press the case power button to drain residual power. Why: This discharges capacitors, eliminating the risk of accidental electrical shock or frying sensitive components with residual power.
-
Cable Management (Modular)
Action: If using a modular PSU, plug in only the cables your components require and route all cables neatly behind the motherboard tray. Why: This improves airflow and makes the build cleaner, but more importantly, it ensures no loose, unused cables are left inside to snag fans or short against metal.
