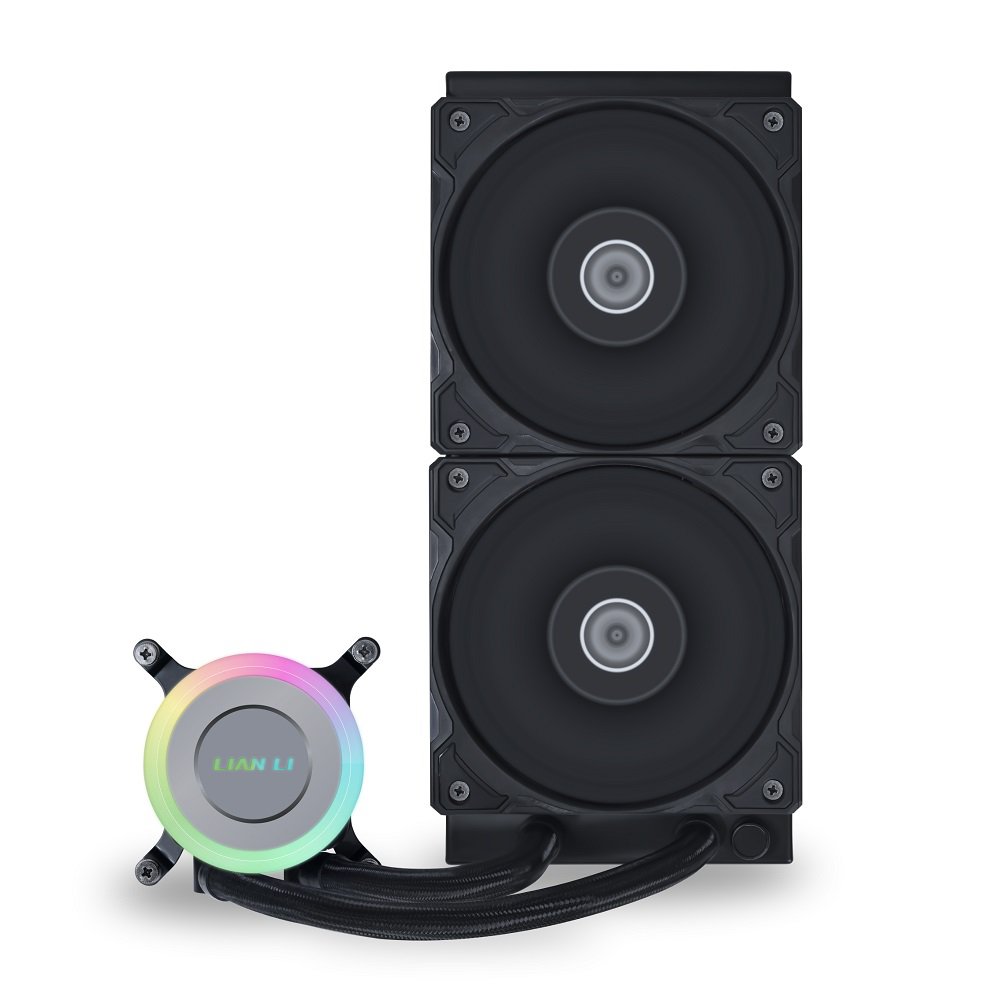

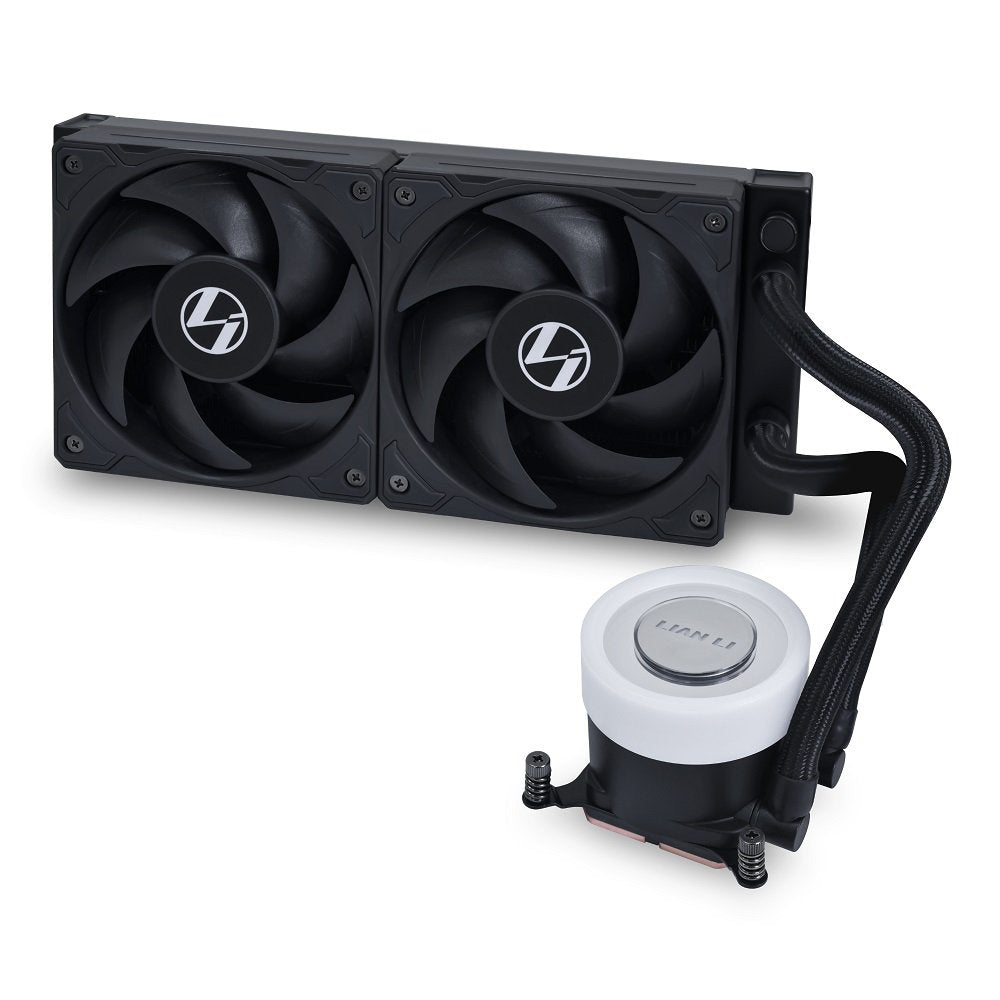

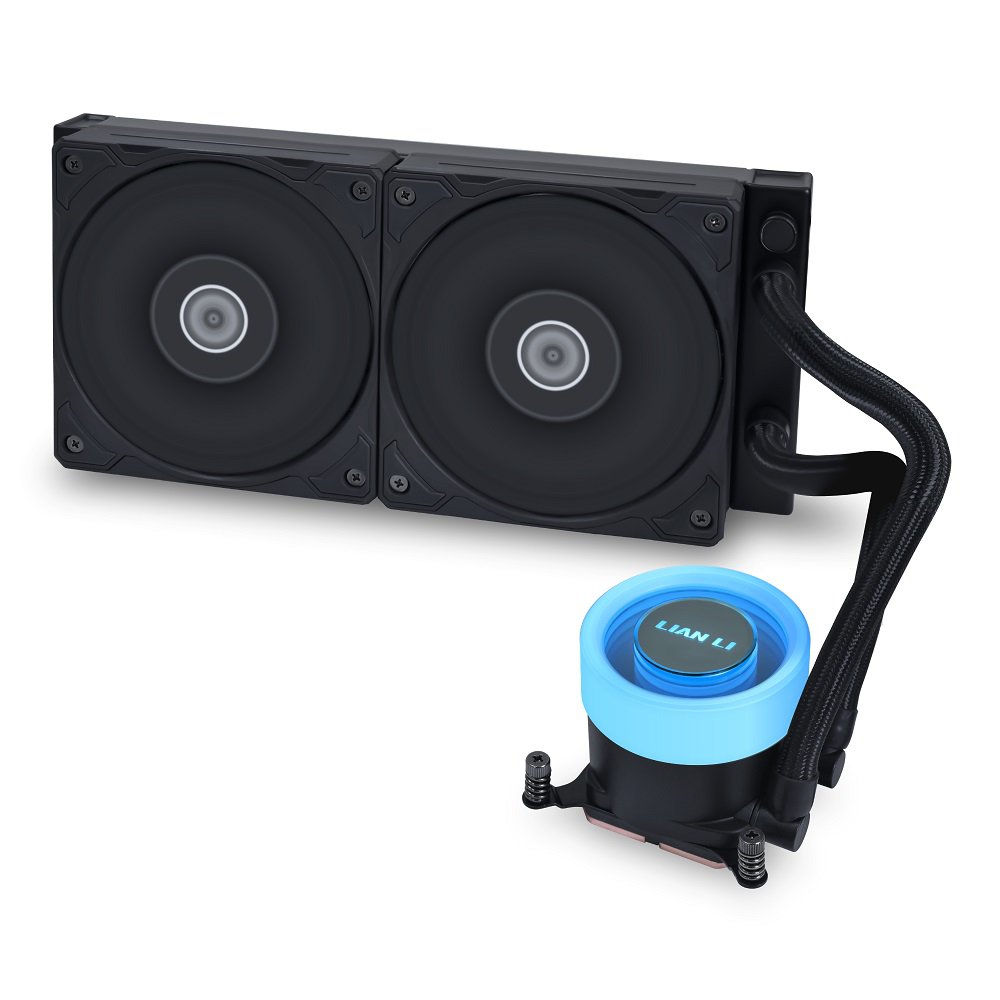

Cool, Quiet, and Compact: Lian Li GALAHAD II Lite 240mm
The Lian Li GALAHAD II Lite 240mm is the perfect blend of high performance and clean, simple design. This liquid cooler is built to keep your CPU cool under pressure with its high-speed pump and powerful fans, all while keeping noise to a minimum. The pre-installed, daisy-chained fans make installation incredibly easy, so you can spend less time on cables and more time on gaming. It’s an ideal choice for compact builds and a great way to get into liquid cooling with a sleek, hassle-free setup.
⭐ Highlights
⭐ Highlights
High-Speed 3800 RPM Pump | Pre-Installed Daisy-Chain PBT Fans | Customizable ARGB Pump Block (Switchable Lid) | Wide Multi-Socket Compatibility (LGA 1700/AM5) | Simplified Single-Cable Connection
⚙️ Specifications
⚙️ Specifications
Cooler Type: Liquid Cooler (AIO)
Socket Compatibility: Intel LGA 1851 / 1700, AMD AM5 / AM4
TDP Rating: No official rating, but capable of handling high-end CPUs.
Fan Size: 2 x 120mm
Noise Level: Up to 34.8 dBA (for the RGB version)
RGB Lighting: Addressable RGB (A-RGB)
For AIO Liquid Coolers Only
Radiator Size: 240mm
Radiator Thickness: 27 mm
Tube Length: 400 mm
For Air Coolers Only
Cooler Dimensions:
Heatsink Material:
Share
The POST-Check Protocol
-
Socket & Size Check
Action: Always confirm the cooler's mounting kit supports your CPU socket (e.g., LGA 1700, AM5) and measure your case to ensure the air heatsink or AIO radiator physically fits the available space. Why: Mismatched parts or oversized coolers (Air/AIO) will prevent proper installation or interfere with RAM slots.
-
Cold Plate Safety
Action: Crucial Before placing the cooler on the CPU, confirm you have removed the protective plastic film from the cold plate, even if thermal paste is pre-applied. Why: Forgetting the film will cause a failure to transfer heat, leading to immediate CPU overheating and shutdown.
-
Thermal Application
Action: If applying your own paste, use a pea-sized blob in the center of the CPU and let the cooler's pressure spread it. Why: This method ensures optimal, even coverage to fill microscopic gaps without using too much paste, which can decrease cooling efficiency.
-
Fan Orientation
Action: Set up all fans (both on the heatsink and the AIO radiator) to follow a logical airflow path (e.g., intake from front/bottom, exhaust out the top/rear). Why: Correct orientation prevents fans from working against each other and moves hot air out of the case efficiently.
-
AIO Pump Position
Action: For AIO liquid coolers, the radiator must be mounted higher than the pump/CPU block, with the tubes running to the bottom of a front-mounted radiator (if possible). Why: This ensures any air in the loop is trapped safely in the radiator, preventing it from entering and damaging the pump, which causes noise and reduces pump lifespan.
