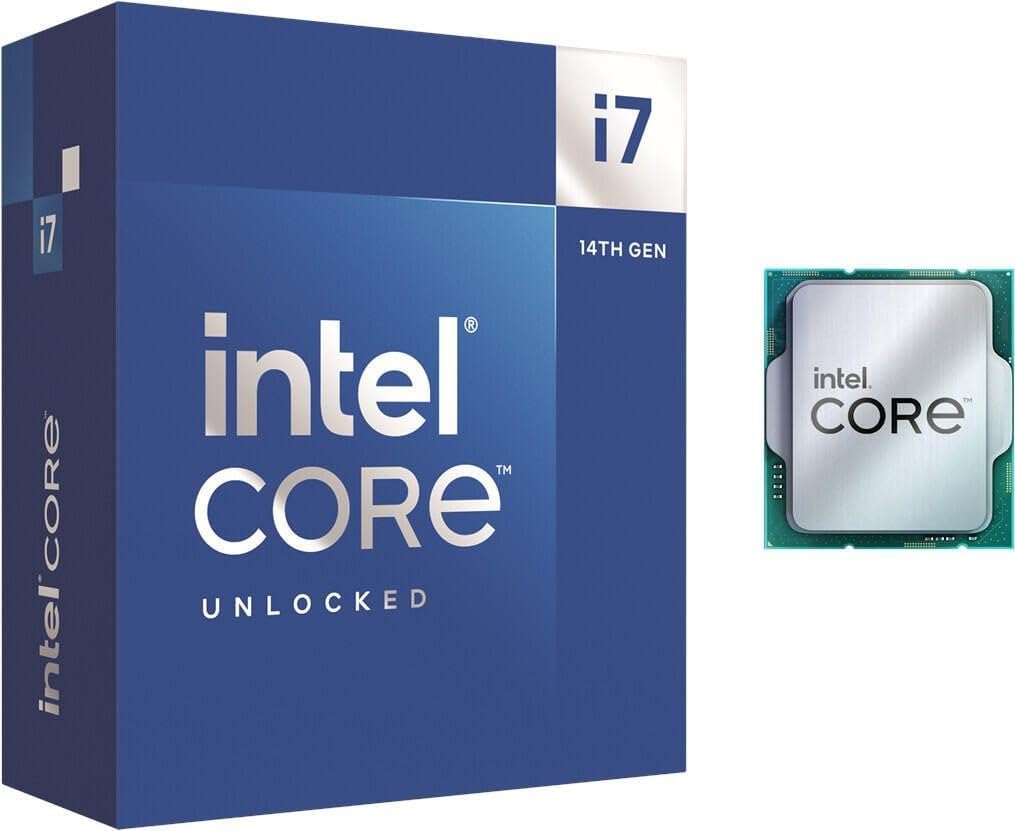

Intel Core i7-14700K
Intel Core i7-14700K
Couldn't load pickup availability
The Ultimate Multitasking and Gaming Powerhouse: Intel Core i7-14700K
The Intel Core i7-14700K is the ultimate hybrid processor built for serious gamers, streamers, and creators. With its revolutionary Hybrid Core Architecture, it features a whopping 20 cores (8 Performance-cores and 12 Efficient-cores) and 28 threads. This means it can effortlessly handle everything from the most demanding games to heavy multitasking and content creation, all at the same time.
⭐ Highlights
⭐ Highlights
20 Cores / 28 Threads | Multitasking King | High Boost Clocks | Platform Flexibility | Simplified Overclocking
⚙️ Specifications
⚙️ Specifications
CPU Manufacturer: Intel
CPU Model: Core i7-14700K
CPU Cache Size: 33 MB (Intel Smart Cache)
CPU Clock_Speed: 3.4 GHz (Base) / 5.6 GHz (Boost)
CPU Core: 20 (8 Performance-cores + 12 Efficient-cores)
CPU Thread: 28
CPU Integrated Graphic: Intel UHD Graphics 770
CPU_Socket: LGA 1700
CPU TDP: 125W (Processor Base Power)
Share
The Post-Check Protocol
-
Socket & Chipset Match
Action: Before opening the box, verify your CPU model is officially supported by both the Motherboard Socket (e.g., LGA 1700 or AM5) and the Chipset (e.g., Z790 or B650). Why: A physical fit doesn't guarantee compatibility; installing an unsupported CPU may require a BIOS update, or the system simply won't boot.
-
Alignment & Orientation
Action: Locate the triangle or arrow on the corner of the CPU and match it exactly to the mark on the motherboard socket. Why: The CPU only seats in the socket one way; incorrect orientation is the primary cause of bent pins (AMD) or damaged socket lands (Intel).
-
Zero Force Rule
Action: Gently lower the CPU straight down into the socket; it should fall perfectly flush with zero force. Why: If the CPU does not sit flat on its own, it is misaligned, and forcing the retention arm will permanently damage the delicate pins or contacts.
-
The Retention Arm
Action: Once the CPU is seated, fully lower and lock the metal retention arm/lever until it clicks and is secured under the side tab. Why: This arm applies the necessary pressure to hold the CPU securely against the socket pins, ensuring electrical contact and preventing movement.
-
Post-Cooler Power
Action: After the CPU cooler is installed, ensure the main 8-pin CPU power cable (and any extra 4-pin cables) are firmly plugged into the motherboard header(s) before attempting to boot. Why: Forgetting this connection is a common beginner error that causes a dead system with no power or immediate shutdown on load.
-
Handle by Edges
Action: Only ever handle the CPU by the edges of the PCB (Printed Circuit Board), and work on a grounded, anti-static surface. Why: Touching the gold contacts or pins transfers static electricity and skin oils, which can degrade electrical connections and cause system instability.
