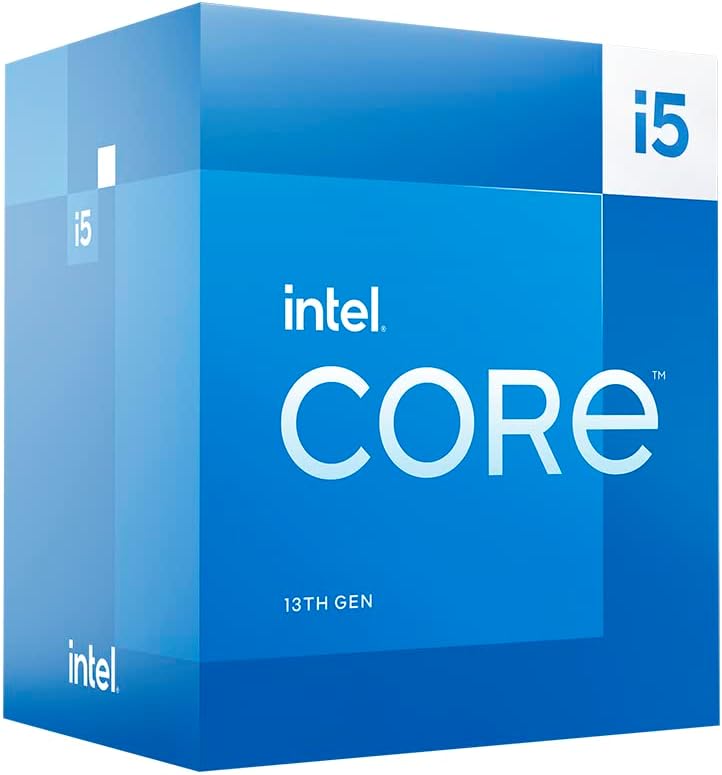

Intel Core i5-13400F
Intel Core i5-13400F
Couldn't load pickup availability
The Smart Choice for Gaming: Intel Core i5-13400F
The Intel Core i5-13400F is a fantastic value for a gaming PC, giving you a powerful 10-core processor without the hefty price tag. Its smart Hybrid Architecture efficiently handles both gaming and multitasking with its mix of Performance-cores and Efficient-cores. This processor is a brilliant choice for building a high-performance system for both work and play.
Note: The "F" in the name means this CPU does not have integrated graphics. You will need a separate graphics card to get a display signal.
⭐ Highlights
⭐ Highlights
10 Cores / 16 Threads | Entry-Level Hybrid Architecture | Excellent Multi-Core Value | DDR4 & DDR5 Platform Support | Includes Stock Cooler
⚙️ Specifications
⚙️ Specifications
CPU Manufacturer: Intel
CPU Model: Core i5-13400F
CPU Cache Size: 20 MB (Intel Smart Cache)
CPU Clock_Speed: 2.5 GHz (Base) / 4.6 GHz (Boost)
CPU Core: 10 (6 Performance-cores + 4 Efficient-cores)
CPU Thread: 16
CPU Integrated Graphic: None (requires a dedicated graphics card)
CPU_Socket: LGA 1700
CPU TDP: 65W
Share
The Post-Check Protocol
-
Socket & Chipset Match
Action: Before opening the box, verify your CPU model is officially supported by both the Motherboard Socket (e.g., LGA 1700 or AM5) and the Chipset (e.g., Z790 or B650). Why: A physical fit doesn't guarantee compatibility; installing an unsupported CPU may require a BIOS update, or the system simply won't boot.
-
Alignment & Orientation
Action: Locate the triangle or arrow on the corner of the CPU and match it exactly to the mark on the motherboard socket. Why: The CPU only seats in the socket one way; incorrect orientation is the primary cause of bent pins (AMD) or damaged socket lands (Intel).
-
Zero Force Rule
Action: Gently lower the CPU straight down into the socket; it should fall perfectly flush with zero force. Why: If the CPU does not sit flat on its own, it is misaligned, and forcing the retention arm will permanently damage the delicate pins or contacts.
-
The Retention Arm
Action: Once the CPU is seated, fully lower and lock the metal retention arm/lever until it clicks and is secured under the side tab. Why: This arm applies the necessary pressure to hold the CPU securely against the socket pins, ensuring electrical contact and preventing movement.
-
Post-Cooler Power
Action: After the CPU cooler is installed, ensure the main 8-pin CPU power cable (and any extra 4-pin cables) are firmly plugged into the motherboard header(s) before attempting to boot. Why: Forgetting this connection is a common beginner error that causes a dead system with no power or immediate shutdown on load.
-
Handle by Edges
Action: Only ever handle the CPU by the edges of the PCB (Printed Circuit Board), and work on a grounded, anti-static surface. Why: Touching the gold contacts or pins transfers static electricity and skin oils, which can degrade electrical connections and cause system instability.
