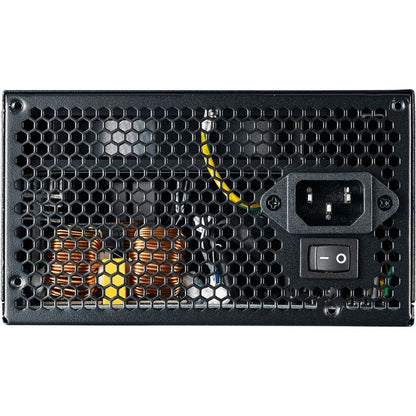

Rock-Solid Value: Cooler Master MWE Gold 750 V3 Power Supply
The Cooler Master MWE Gold 750 V3 is the perfect mid-to-high-range power solution, built for durability and clean aesthetics. Certified 80 PLUS Gold for high efficiency, this Fully Modular unit ensures you only use the cables you need, drastically reducing clutter and improving airflow. It’s ready for the newest hardware with a native 12V-2x6 cable (450W rated), providing guaranteed stability and a 10-year warranty for long-term peace of mind.
⭐ Highlights
⭐ Highlights
80 PLUS Gold Certified Efficiency | ATX 3.1 & PCIe 5.1 Ready (Native 12V-2x6) | Fully Modular Cabling | Silent Operation with Zero-RPM Mode | Premium 10-Year Warranty
⚙️ Specifications
⚙️ Specifications
PSU_Form_Factor: ATX (Standard)
PSU_Wattage: 750 W (Continuous)
PSU_Efficiency_Rating: 80 PLUS Gold

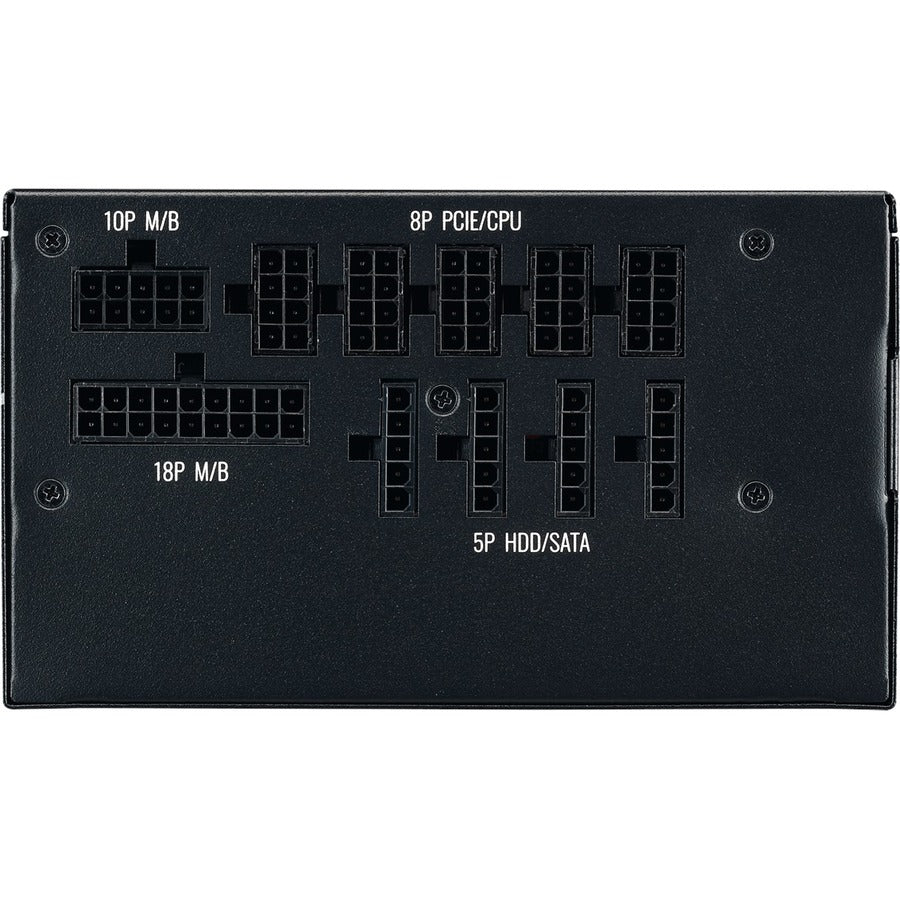

PSU_Modularity: Fully Modular
PSU_PCIe_5_Connector: 1 x 12V-2x6 (12+4 pin) cable (450W Rated)

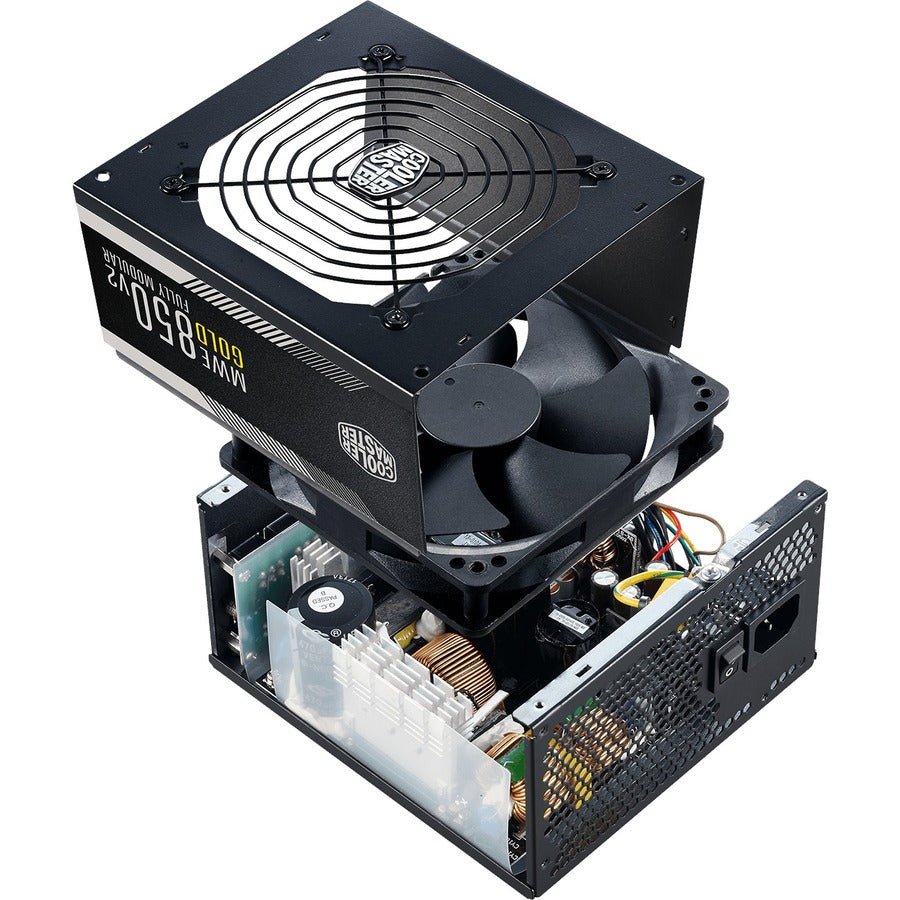

PSU_Fan_Size_mm: 120 mm (Hydro Dynamic Bearing with Zero RPM Mode)
PSU_Safety_Protections: OVP (Over Voltage), UVP (Under Voltage), SCP (Short Circuit), OPP (Over Power), OTP (Over Temperature), OCP (Over Current), Surge & Inrush Protection
Share
The POST-Check Protocol
-
Calculate Required Wattage
Action: Use an online PSU calculator (or check your GPU/CPU recommendations) to determine the wattage needed and choose a PSU that is 20% to 30% higher than that total load. Why: Running a PSU at or near its maximum capacity reduces its efficiency and lifespan, leading to potential instability and crashes.
-
NEVER Mix Modular Cables
Action: CRITICAL: Only use the modular cables that came inside the box of your specific, new PSU, and never reuse old cables from a previous unit, even if they fit. Why: Modular cables are not standardized on the PSU end; mixing them can send incorrect voltages to components and instantly destroy the motherboard or GPU.
-
Fan Orientation
Action: When installing the PSU into the case, orient the fan so it is facing the vent/dust filter on the case (usually downward, at the bottom). Why: This ensures the PSU pulls cool, fresh air directly from outside the case to cool its own components, maximizing its lifespan.
-
Essential Cable Connections
Action: Ensure the 24-pin ATX (motherboard), the 8-pin CPU (motherboard top-left), and all PCIe power cables (GPU) are fully seated and clicked in. Why: A loose or partially plugged-in cable can lead to catastrophic failure, burning out the connector port or causing system instability under load.
-
The Power Switch

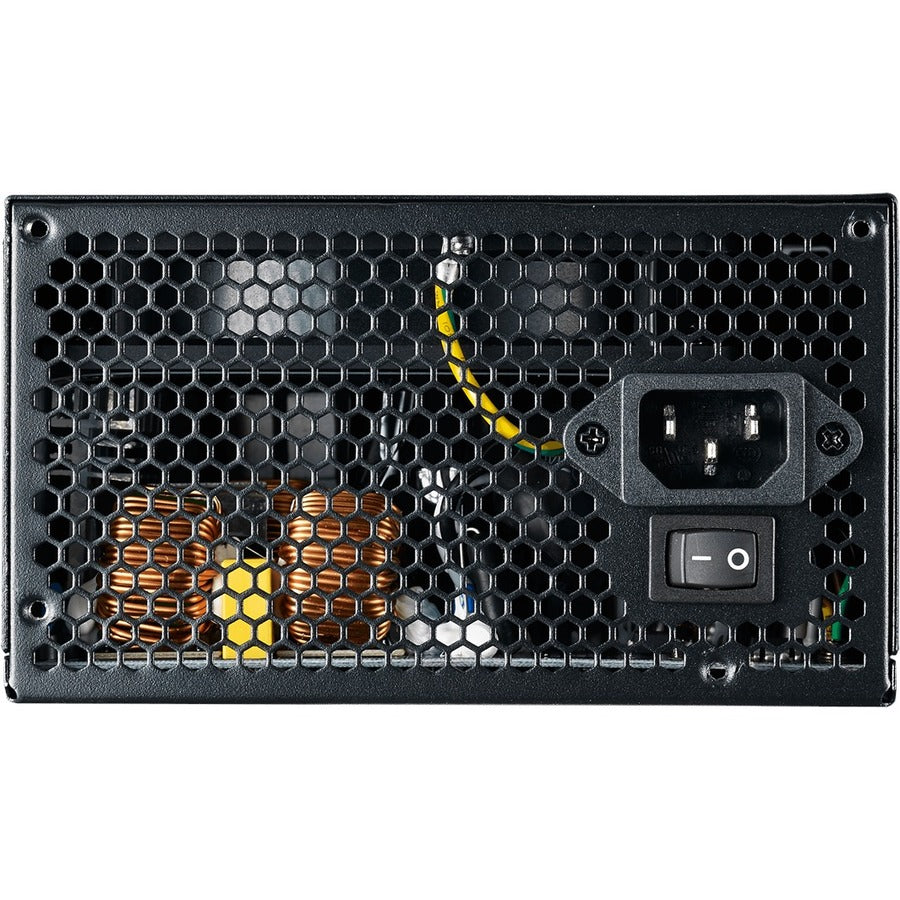

Action: Before working inside the PC, flip the power switch on the PSU itself to the OFF (0) position and unplug the wall cord, then press the case power button to drain residual power. Why: This discharges capacitors, eliminating the risk of accidental electrical shock or frying sensitive components with residual power.
-
Cable Management (Modular)
Action: If using a modular PSU, plug in only the cables your components require and route all cables neatly behind the motherboard tray. Why: This improves airflow and makes the build cleaner, but more importantly, it ensures no loose, unused cables are left inside to snag fans or short against metal.
