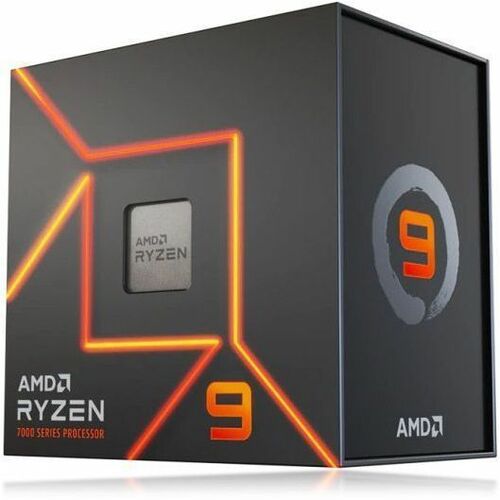

AMD Ryzen 9 7000 7900X
AMD Ryzen 9 7000 7900X
Couldn't load pickup availability
The High-Speed Multitasking Champion: AMD Ryzen 9 7900X
The AMD Ryzen 9 7900X is a powerhouse of a processor built for creators and gamers who need to do it all at once. With 12 cores and 24 threads, it's designed to tear through demanding applications like video editing and 3D rendering while still delivering incredible performance in games. Built on the next-gen AM5 platform, this CPU is ready for the fastest DDR5 memory and PCIe 5.0, making it the perfect core for a high-end system.
⭐ Highlights
⭐ Highlights
⚙️ Specifications
⚙️ Specifications
CPU Manufacturer: AMD
CPU Model: Ryzen 9 7900X
CPU Cache Size: 64 MB (L3 Cache)
CPU Clock_Speed: 4.7 GHz (Base) / 5.6 GHz (Boost)
CPU Core: 12
CPU Thread: 24
CPU Integrated Graphic: AMD Radeon Graphics
CPU_Socket: AM5
CPU TDP: 170W
Share
The Post-Check Protocol
-
Socket & Chipset Match
Action: Before opening the box, verify your CPU model is officially supported by both the Motherboard Socket (e.g., LGA 1700 or AM5) and the Chipset (e.g., Z790 or B650). Why: A physical fit doesn't guarantee compatibility; installing an unsupported CPU may require a BIOS update, or the system simply won't boot.
-
Alignment & Orientation
Action: Locate the triangle or arrow on the corner of the CPU and match it exactly to the mark on the motherboard socket. Why: The CPU only seats in the socket one way; incorrect orientation is the primary cause of bent pins (AMD) or damaged socket lands (Intel).
-
Zero Force Rule
Action: Gently lower the CPU straight down into the socket; it should fall perfectly flush with zero force. Why: If the CPU does not sit flat on its own, it is misaligned, and forcing the retention arm will permanently damage the delicate pins or contacts.
-
The Retention Arm
Action: Once the CPU is seated, fully lower and lock the metal retention arm/lever until it clicks and is secured under the side tab. Why: This arm applies the necessary pressure to hold the CPU securely against the socket pins, ensuring electrical contact and preventing movement.
-
Post-Cooler Power
Action: After the CPU cooler is installed, ensure the main 8-pin CPU power cable (and any extra 4-pin cables) are firmly plugged into the motherboard header(s) before attempting to boot. Why: Forgetting this connection is a common beginner error that causes a dead system with no power or immediate shutdown on load.
-
Handle by Edges
Action: Only ever handle the CPU by the edges of the PCB (Printed Circuit Board), and work on a grounded, anti-static surface. Why: Touching the gold contacts or pins transfers static electricity and skin oils, which can degrade electrical connections and cause system instability.
